How to Choose a Drip Irrigation Tape Production Line for Your Factory

Start With the Drip Tape, Not the Machine

Selecting a drip irrigation tape production line should start with the product specification. The same production line cannot automatically meet every combination of tape size, wall thickness, dripper type and spacing.

Before requesting equipment details or a quotation, the target product and expected production output should be defined. These requirements provide the basis for selecting the appropriate extrusion, dripper feeding, punching and winding configuration.

What Equipment Is Included in a Drip Tape Production Line?

A complete drip irrigation tape production line normally integrates several functional sections. The exact configuration depends on the product and production requirements.

Material Feeding and Extrusion System

The extrusion system plasticizes the raw material and forms the basic drip tape structure. Extrusion capacity and process control should match the required tape dimensions and production speed.

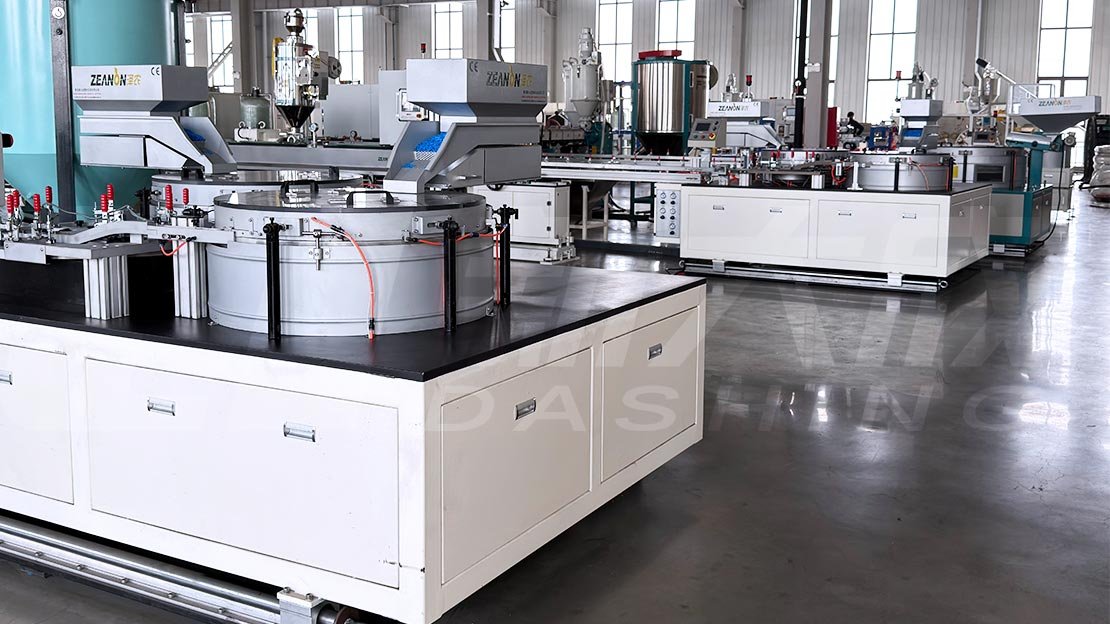

Dripper Feeding and Insertion System

For embedded flat-emitter drip tape, the feeding system supplies and inserts drippers into the tape during continuous extrusion. Dripper size, feeding rate and spacing need to match the target product.

Forming, Sizing and Cooling Section

This section establishes the tape dimensions and stabilizes the material after extrusion. Stable sizing and cooling are important for maintaining consistent product dimensions, especially when producing thin-wall tape.

Haul-Off System

The haul-off controls the movement of the tape through the line. Its operating speed must be coordinated with extrusion output and downstream processes.

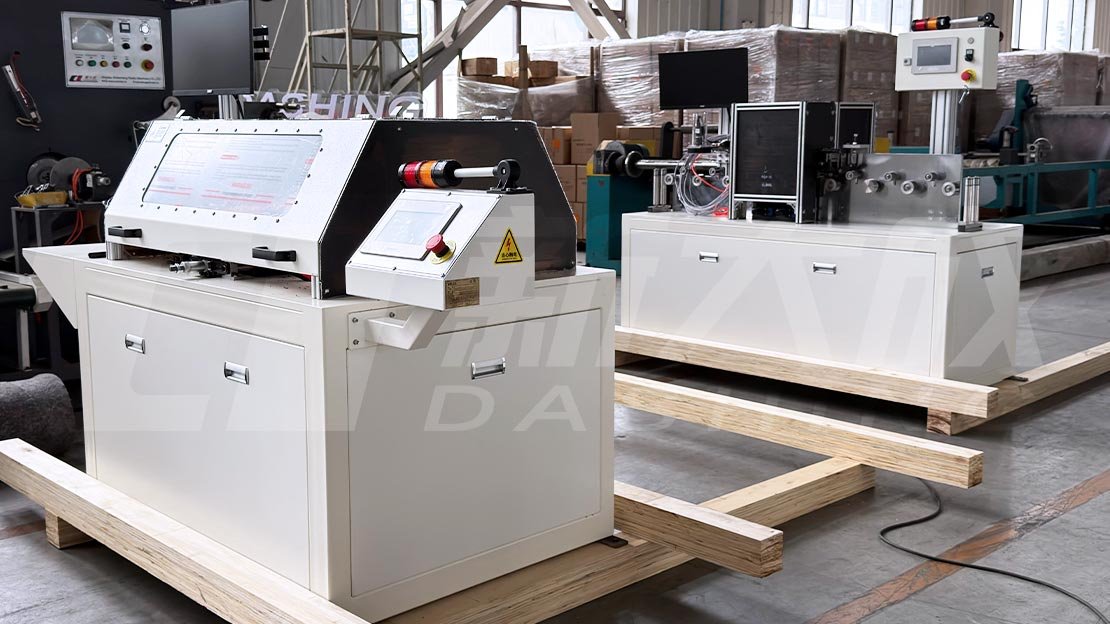

Punching System

The punching system creates water outlet holes at specified positions when required by the product design. The punching speed and positioning system need to correspond with the production speed and hole spacing.

Winding System

The winding system collects the finished drip tape into rolls. Depending on the configuration, automatic winding can include length measurement, cutting, roll change, tape arrangement and unloading.

How Fast Should a Drip Tape Production Line Run?

The required production speed depends on the target output and product specification. A high maximum speed is not necessarily required for every factory.

When comparing equipment, the relevant question is whether the complete production line can maintain stable product quality at the required operating speed. Extrusion output, dripper feeding, punching and winding capacity should be considered together.

Xindacheng's high-speed drip line equipment can reach up to 450 m/min under specified conditions. The applicable production speed depends on the product configuration and process conditions.

Why Dripper Spacing Matters When Choosing the Line

Dripper spacing is one of the basic specifications of drip irrigation tape. It determines the frequency of water outlets along the tape and directly affects the required dripper feeding rate.

Different projects may require different spacing according to crop type, irrigation layout and customer specifications. The production line should therefore be selected according to the required spacing range rather than a single standard value.

How Does Wall Thickness Affect the Production Line?

Wall thickness affects material consumption, extrusion conditions and the forming process. Thin-wall drip tape generally requires accurate control of extrusion output, cooling and haul-off speed.

When selecting equipment, the expected wall-thickness range should be provided to the manufacturer. This allows the production line configuration to be evaluated against the actual product requirements.

Should a New Factory Choose a Fully Automatic Line?

The choice between different automation levels depends on production volume, labor availability, roll length, packaging requirements and the factory's operating plan.

A fully automatic winding system can reduce manual operations during roll change, length measurement, cutting and unloading. For lower production requirements, a simpler configuration may also be considered if it meets the required output and operating process.

What Should Be Included in a Drip Tape Production Line Quotation?

A technical quotation should be based on clearly defined product and production requirements. Important items to confirm include:

●  Applicable tape diameter or width

●  Wall-thickness range

●  Dripper type and dimensions

●  Dripper spacing range

●  Production speed and expected output

●  Punching or hole-forming method

●  Winding method and roll length

●  Automation configuration

●  Electrical and control system configuration

Providing these details makes it easier to compare equipment configurations rather than comparing price alone.

Common Mistakes When Buying a Drip Tape Production Line

Choosing the Machine Before Defining the Product

Equipment selection should follow the target drip tape specification. Without product parameters, it is difficult to determine whether a proposed configuration is suitable.

Comparing Only Maximum Speed

Maximum line speed is only one technical parameter. Product stability and the coordinated capacity of the complete line also need to be considered.

Ignoring the Winding Section

Winding capacity affects the continuous operation of the production line. The winder should be matched with the required production speed and roll length.

Not Confirming Dripper Specifications

Different dripper dimensions and designs may require different feeding and insertion configurations. Dripper information should therefore be confirmed before equipment selection.

Requesting a Price Without Technical Specifications

A machine price without product specifications does not provide enough information for a meaningful technical comparison. The target product and production requirements should be defined first.

What Information Should You Send to a Machine Manufacturer?

For an initial equipment evaluation, the following information is useful:

●  Target drip tape diameter or width

●  Wall thickness

●  Dripper type

●  Dripper spacing

●  Required production speed or daily output

●  Roll length

●  Required automation level

●  Raw material information, if available

If the project involves several drip tape specifications, all major product ranges should be provided so that the production line can be evaluated for the intended production range.

FAQ: Drip Irrigation Tape Production Line

What is the main machine for making drip irrigation tape?

The main equipment is a drip tape extrusion production line. It integrates extrusion with dripper feeding, forming, cooling, punching and winding according to the product configuration.

What size drip tape can be produced?

The applicable size range depends on the production line configuration. Xindacheng's XDC-DGG-450A/B equipment is designed for Φ12–20 mm drip products under the specified configuration.

Can the production line produce different dripper spacings?

Different dripper spacing requirements can be considered through the production line configuration and control system. The required spacing range should be confirmed before equipment selection.

How do I choose the right production speed?

The appropriate speed depends on required output, product dimensions, wall thickness, dripper configuration, material and the operating conditions of the complete line.

Can Xindacheng provide a complete drip tape production line?

Xindacheng provides drip irrigation tape production equipment covering extrusion, dripper feeding, punching and winding processes. The configuration can be evaluated according to the required product specifications and production capacity.

Build the Line Around Your Product

The selection of a drip irrigation tape production line should be based on the finished product and planned production requirements. Tape size, wall thickness, dripper type, spacing, output and automation level provide the main basis for equipment configuration.

For a new production project or equipment upgrade, these specifications can be submitted for technical evaluation before selecting the final line configuration.
