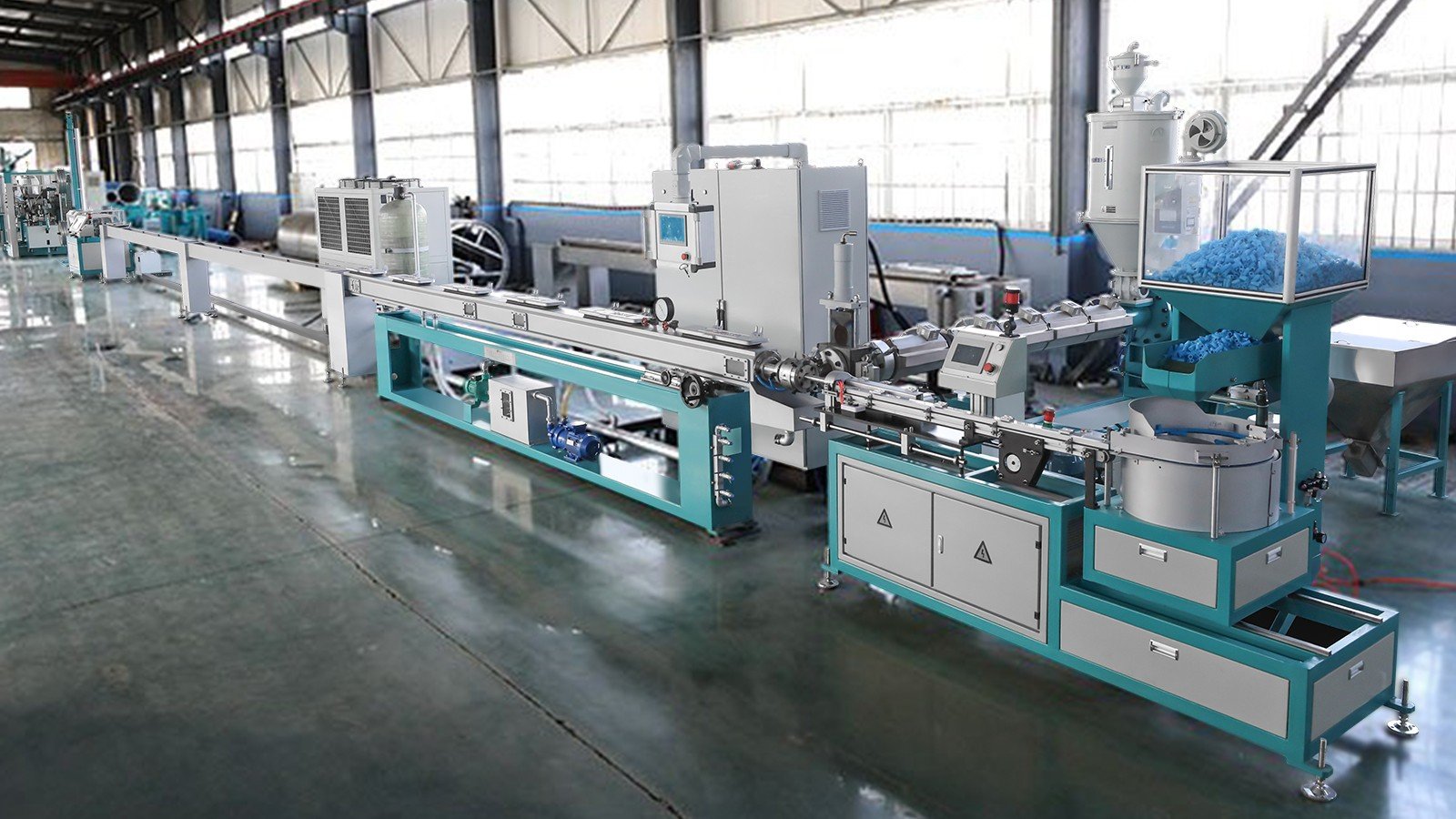

High-speed cylindrical drip irrigation pipe production line is designed for efficient, stable, and continuous manufacturing of drip irrigation pipe used in modern agricultural irrigation systems. The line integrates advanced automation, precise control, and flexible configuration to meet different production requirements.
1. Automatic Dripper Selection, Feeding and Inserting System
The production line is equipped with an automatic dripper selection, delivering, and inserting system.
It adopts an advanced European rotary conveying mechanism combined with servo motor control, ensuring precise and stable dripper spacing during high-speed production.
The guide rail position can be adjusted automatically to accommodate different tape specifications.
A special anti-sticking device is integrated to prevent drippers from jamming, ensuring smooth and continuous operation.
Key advantages:
● Precise dripper spacing control
● Stable dripper insertion at high speed
● Reduced downtime and improved production efficiency
2. Extrusion Die and Cooling Tank System
The extrusion die and cooling tank are specially designed for cylindrical drip irrigation tape production.
The extrusion die features an automatic adjustment structure, allowing stable pipe forming even at high line speeds.
The cooling tank ensures uniform pipe shaping and consistent wall thickness.
The maximum production line speed can reach up to 120 meters per minute, supporting high-capacity manufacturing.
Key advantages:
● Uniform pipe forming
● Stable extrusion at high output
● Suitable for continuous drip tape production
3. Servo-Controlled Punching Device
The punching unit adopts advanced multi-drilling technology and is controlled by servo motors, ensuring accurate and stable punching performance.
The punching number and position can be freely combined and adjusted according to customer requirements.
The design allows easy maintenance and long service life, making it suitable for long-term industrial operation.
Key advantages:
● Flexible punching configuration
● High punching accuracy and efficiency
● Reliable operation and easy maintenance
4. Semi-Automatic Winder
The semi-automatic winder features a double-position design for pipe coiling and cutting.
Manual roll exchange provides a practical solution for manufacturers seeking cost-effective winding without compromising stability.
Key advantages:
● Stable coiling and cutting
● Simple operation
● Suitable for medium-capacity production

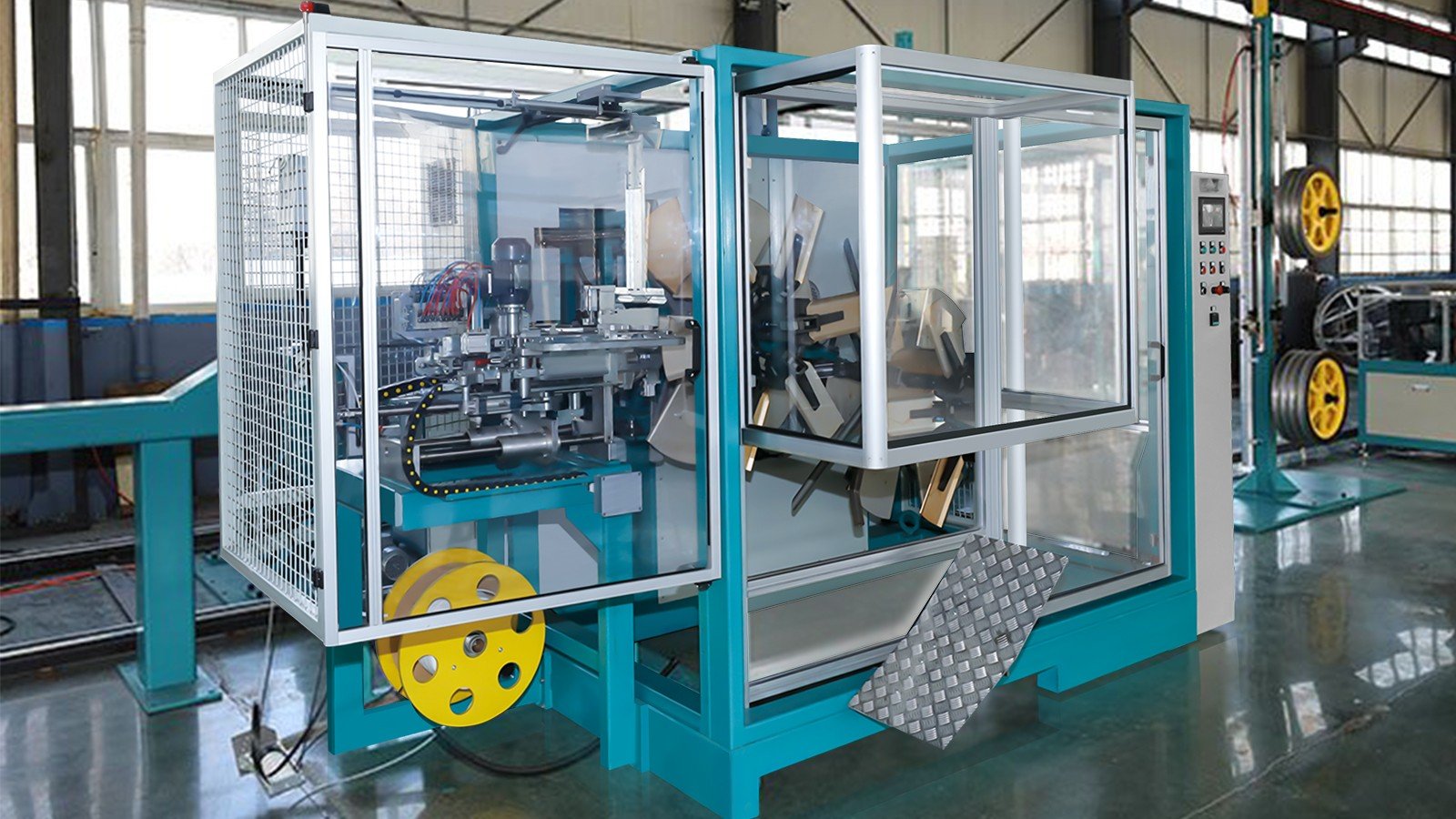

5. Fully Automatic Winder and Online Strap Packing System
The fully automatic winder integrates coiling, cutting, roll changing, and metering functions into one system.
An online automatic strap packing unit can be installed to realize fully automated packaging.
Winding speed and roll length are controlled through a PLC touch screen, ensuring precise control and consistent roll quality.
● Winding speed up to 100 m/min without online strap packing unit
● Winding speed up to 120 m/min with online strap packing unit
Key advantages:
● Fully automated winding and packaging
● Accurate metering and roll control
● Reduced labor requirements
Application
This cylindrical drip irrigation pipe production line is suitable for manufacturers producing drip irrigation pipe for agricultural irrigation systems, greenhouses, and water-saving irrigation projects.
