| Item | Specification |
Product | Externally Mounted Pre-Welded Outlet Flexible Pipe |
Outlet Spacing | 100–1500 mm, adjustable |
Production Speed | 5–6 m/min* |
Working Pressure | 0.5 MPa |
Product Size | 3–6 in* |
Installed Power | 5 kW |
Rated Voltage | 220 V |
Equipment Dimensions | 5.5 × 1.7 × 2 m |
*Final specifications depend on hose structure, outlet size and confirmed production configuration.

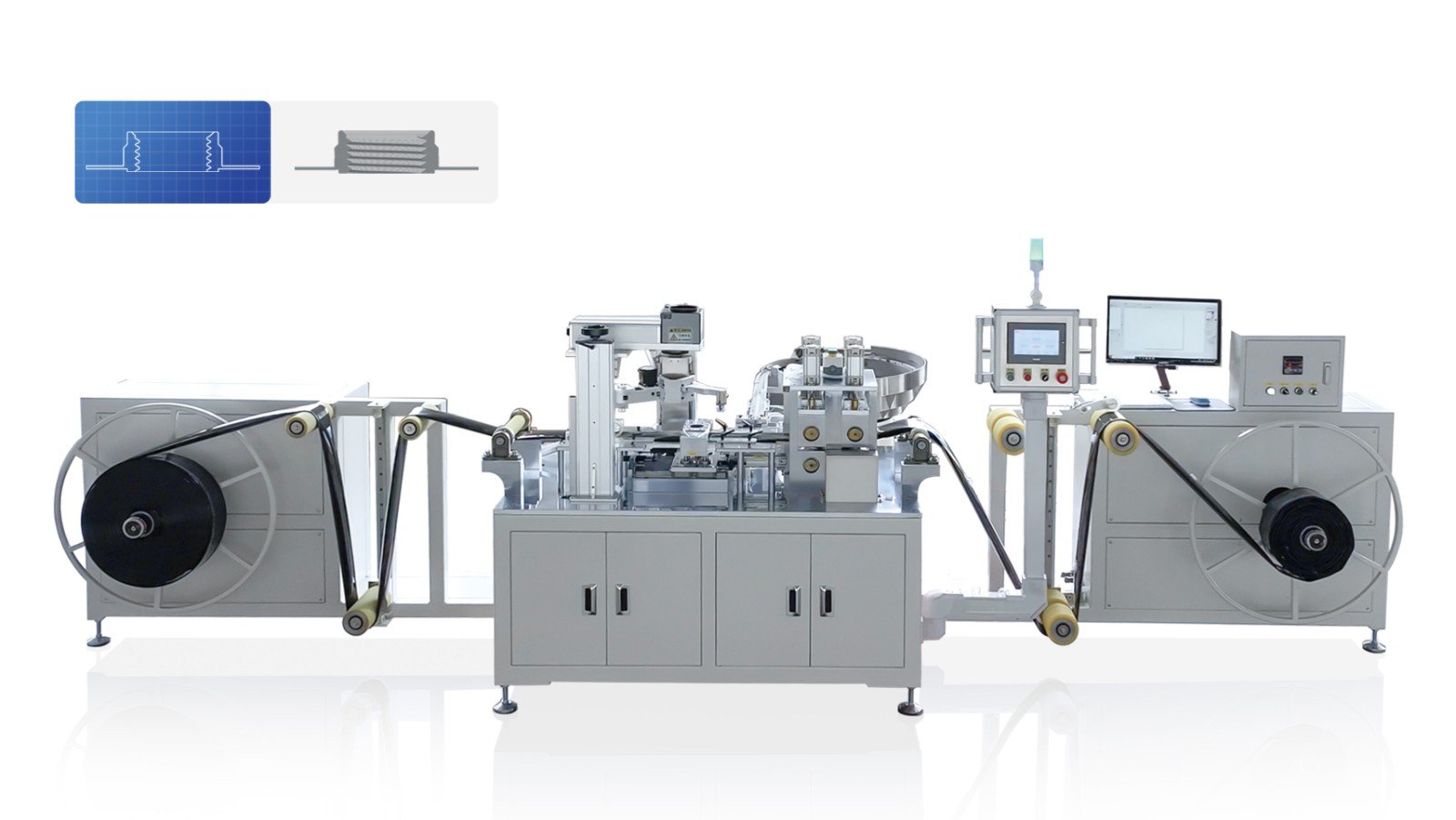

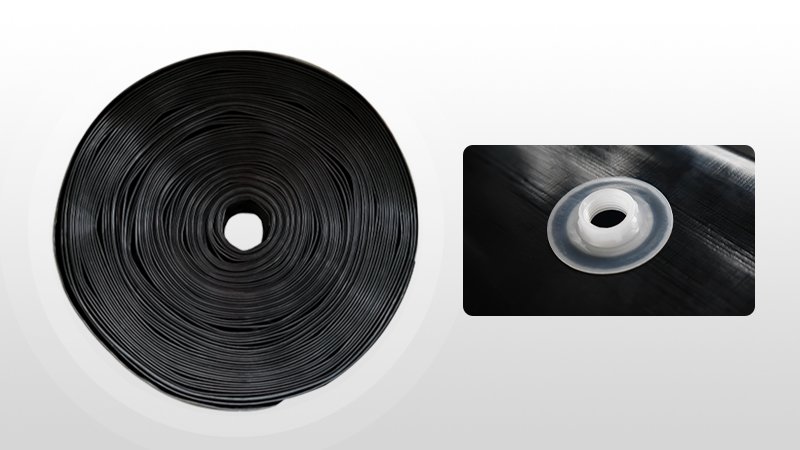

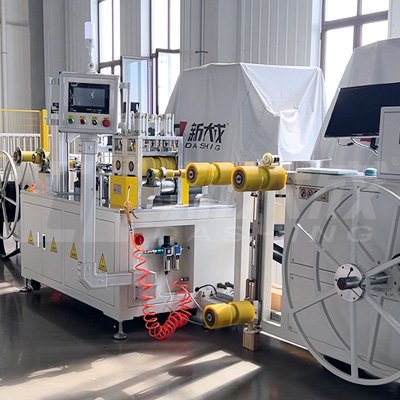

Xindacheng's Externally Mounted Pre-Welded Outlet Pipe Production Line is designed for continuous production of flexible irrigation hoses with externally mounted and pre-welded water outlets.
The system integrates hose unwinding, hole punching, outlet positioning, laser welding and automatic winding into a continuous production process. Outlet spacing can be adjusted according to different irrigation layouts, making the line suitable for manufacturers producing flexible irrigation hoses for various agricultural applications.
Compared with conventional manual or semi-automatic outlet installation, the integrated production process helps reduce manual operations and maintain consistent outlet positioning and welding quality.
Key Features
Externally Mounted Pre-Welded Outlets

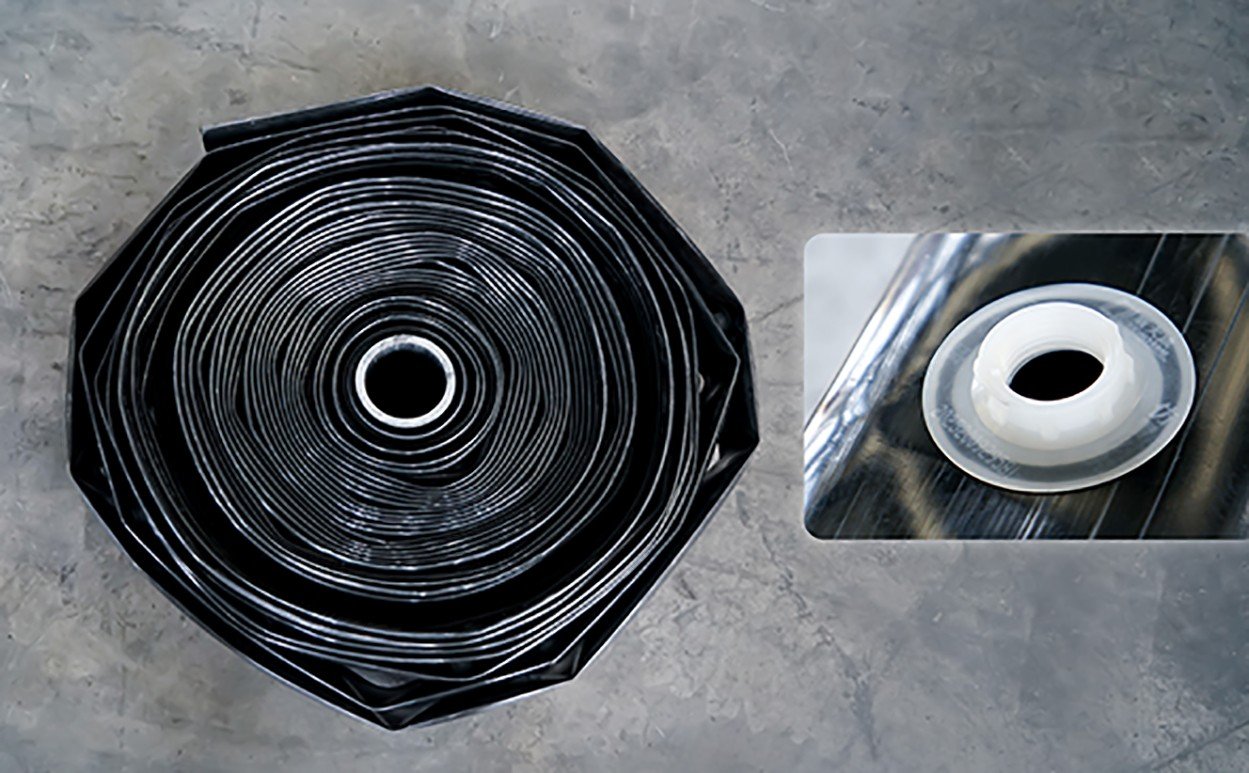

The production line installs water outlets on the outside of the flexible irrigation hose and welds them directly to the hose.
The externally mounted structure provides a standardized threaded connection for downstream irrigation components while maintaining a continuous production process.
Laser Welding for Consistent Connections
A laser welding system is used to join the outlet interface and hose.
The controlled welding process helps achieve consistent connections and reduces the risk of leakage caused by unstable manual assembly. Welding parameters can be adjusted according to the hose and outlet configuration.
Adjustable Outlet Spacing
The outlet position can be configured according to the required irrigation layout.
The system supports adjustable spacing from 100 to 1500 mm, allowing manufacturers to produce hoses for different crop rows, planting patterns and irrigation requirements.

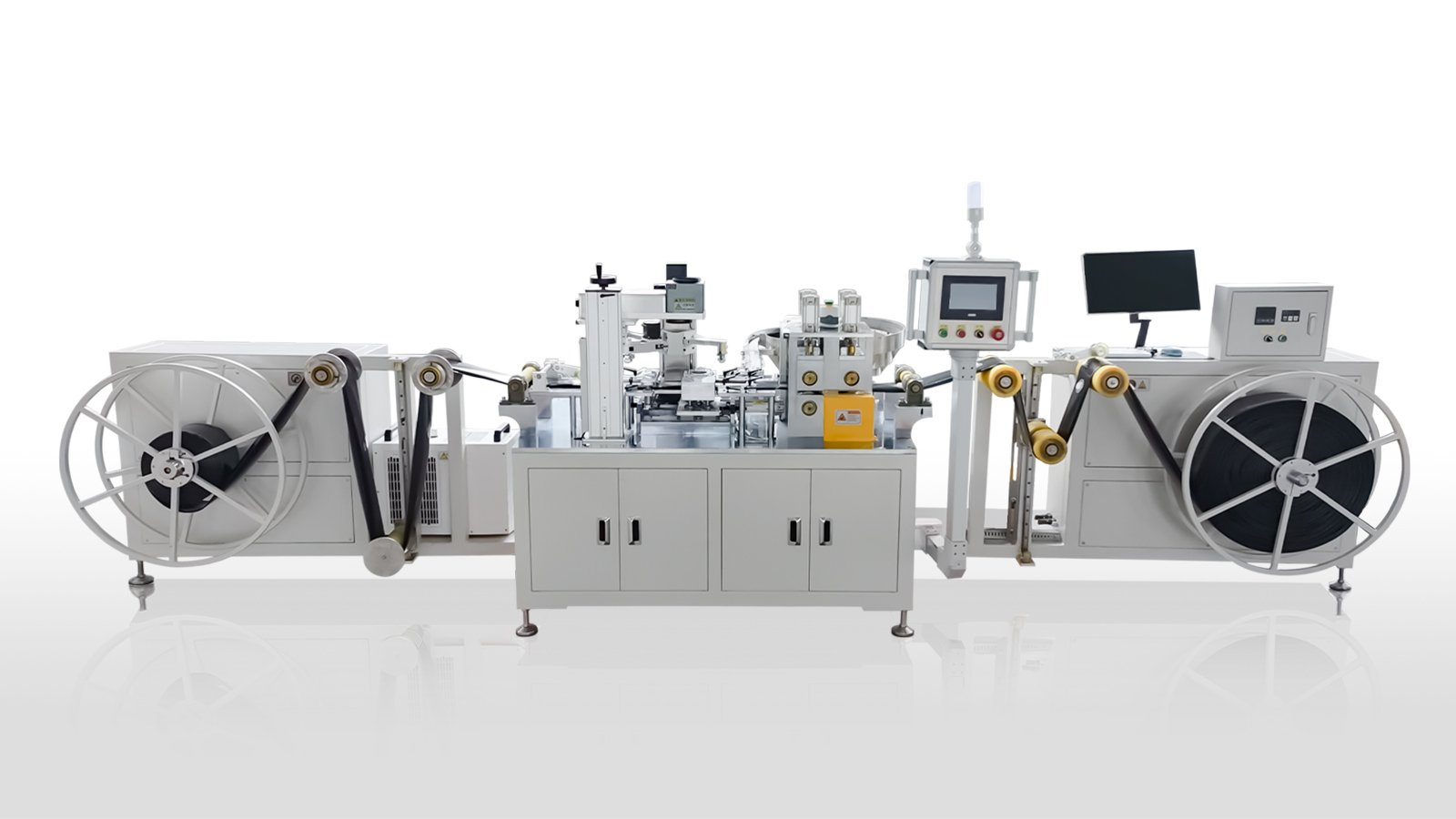

Continuous Automated Production
The production line combines the major processing stages into one continuous system:
Unwinding → Hole Punching → Outlet Feeding → Laser Welding → Hose Storage → Winding
This integrated configuration reduces intermediate manual handling and supports stable production during continuous operation.
Compact Equipment Configuration
The main equipment occupies approximately 5.5 m × 1.7 m × 2 m, making it suitable for production facilities where floor space needs to be considered.
The production speed can reach 5–6 m/min, depending on hose specifications, outlet configuration and production conditions.
Why Xindacheng
Xindacheng develops and manufactures equipment for drip irrigation, flexible irrigation hose, dripper and plastic processing applications.
This production line combines automated punching, outlet positioning, laser welding and winding into a dedicated manufacturing solution for externally mounted pre-welded outlet irrigation hoses.
The equipment configuration can be adapted according to the required hose specification, outlet type, outlet spacing and production capacity.

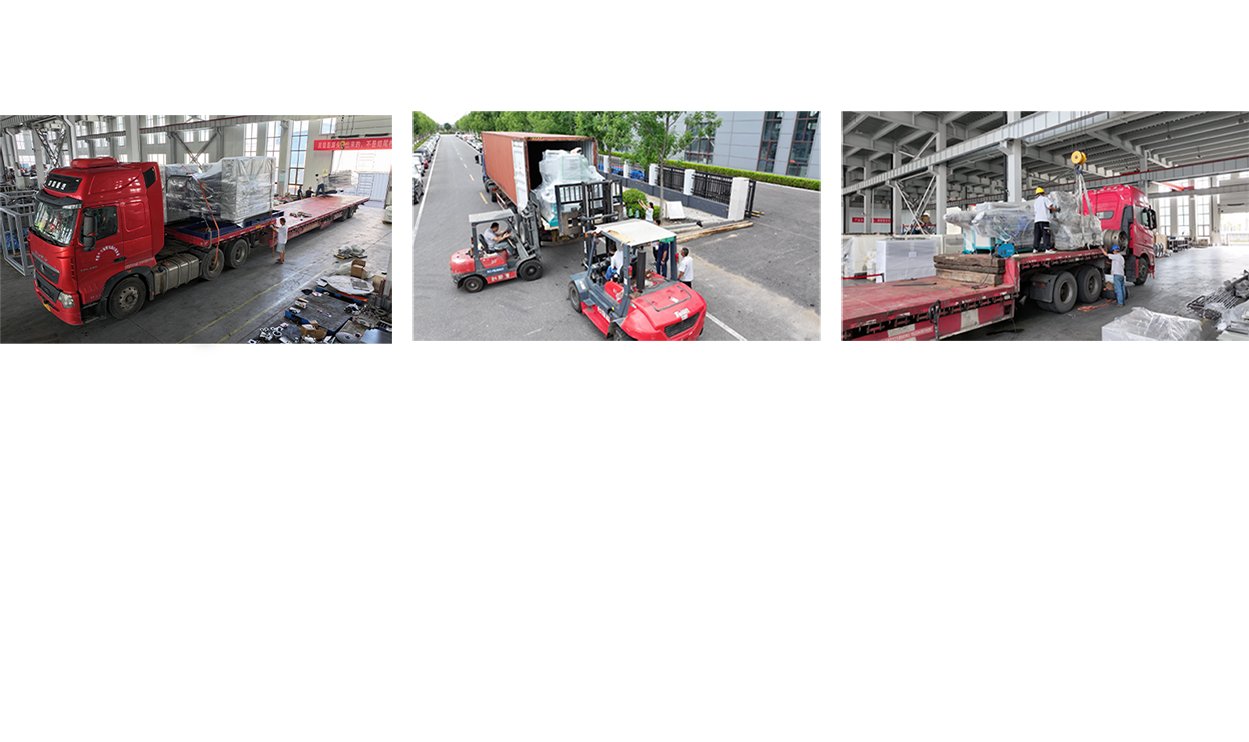

Global Equipment Delivery
Xindacheng provides complete irrigation hose production equipment for customers in international markets. Equipment is assembled, tested and prepared for overseas shipment according to the confirmed project configuration.
Exhibition Experience
Xindacheng regularly participates in international plastics, irrigation and machinery exhibitions, presenting irrigation production equipment and related plastic processing technologies to customers and industry professionals from different markets.
Cooperation & Industry Experience
Xindacheng works with customers and industry partners in different international markets, providing equipment solutions for irrigation hose production, drip irrigation products and plastic processing applications.
Request Technical Information
For a suitable configuration, please provide your required hose size, outlet type, outlet spacing, working pressure and target production capacity. Xindacheng can recommend the corresponding production line configuration according to your application.
