Internally Embedded Pre-Welded Outlet Flexible Pipe Production Line

Xindacheng's Internally Embedded Pre-Welded Outlet Flexible Pipe Production Line is designed for continuous manufacturing of flexible irrigation hoses with pre-installed water outlet joints.

Unlike conventional hoses that require outlet installation after production, this system integrates outlet feeding, hole punching, welding, hose forming and winding into one automated production process. The outlet joints are positioned and welded during hose manufacturing, helping reduce manual assembly and maintain consistent outlet spacing.

The line supports laser or ultrasonic welding and adjustable outlet spacing from 100 to 1500 mm, allowing the equipment to be configured for different irrigation layouts and hose specifications.

Main Advantages

Pre-Installed Water Outlet Structure

Water outlet joints are installed into the hose during production rather than being added manually after the hose is manufactured.

This integrated structure simplifies subsequent installation and helps maintain consistent outlet positioning along the finished hose.

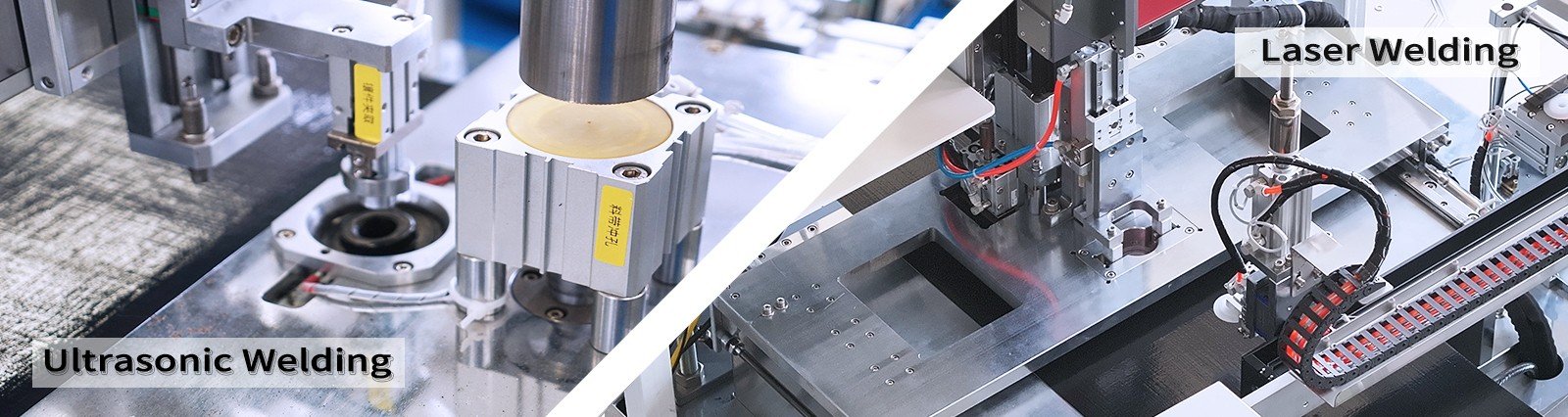

Laser or Ultrasonic Welding

The production line can use laser welding or ultrasonic welding according to the required material, hose structure and production configuration.

The welding process is integrated with automatic outlet feeding and positioning to support continuous production and consistent connection quality.

Adjustable Outlet Spacing

Outlet spacing can be adjusted according to the required irrigation layout.

The standard configuration supports spacing from 100 to 1500 mm, making the hose suitable for different crop rows, planting patterns and water distribution requirements.

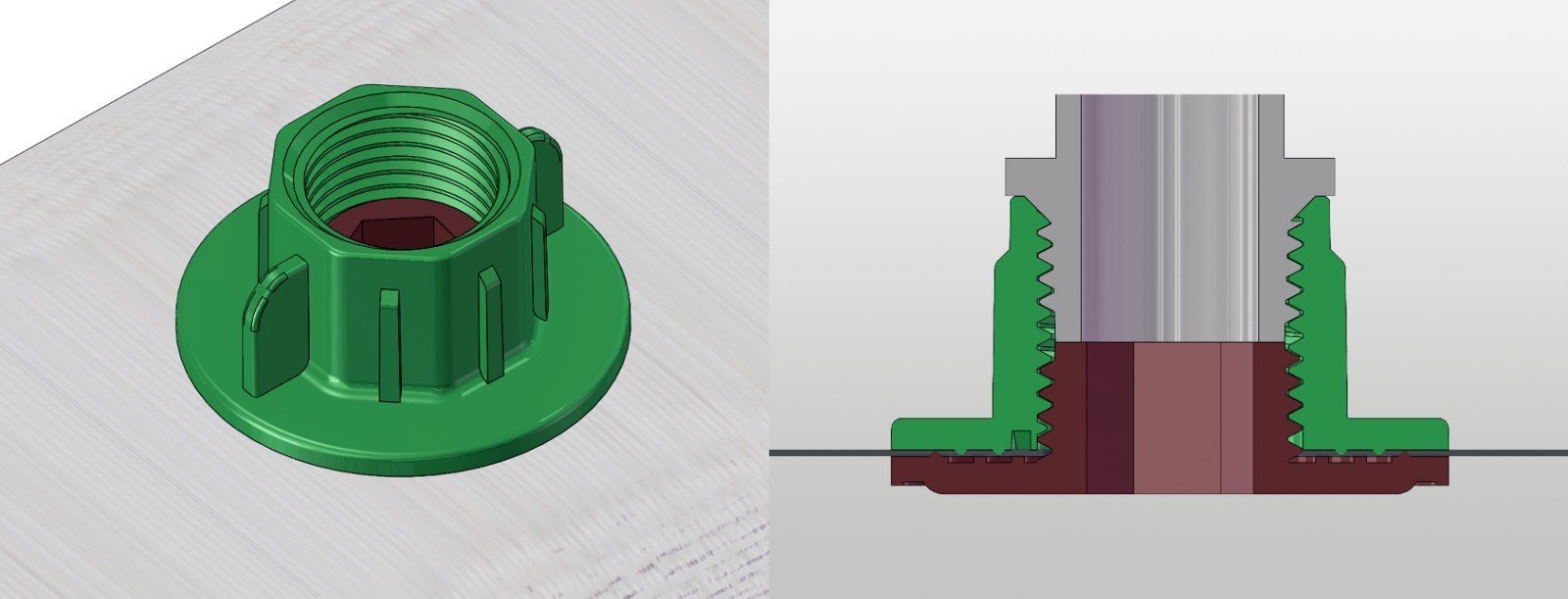

Welding + Mechanical Fixation

Xindacheng’s outlet connection structure combines welding and mechanical fixation.

The dual-fixation design is intended to improve the stability of the outlet connection and sealing performance. The specific structure and patent coverage can be confirmed according to the selected equipment configuration.

Automated Continuous Production

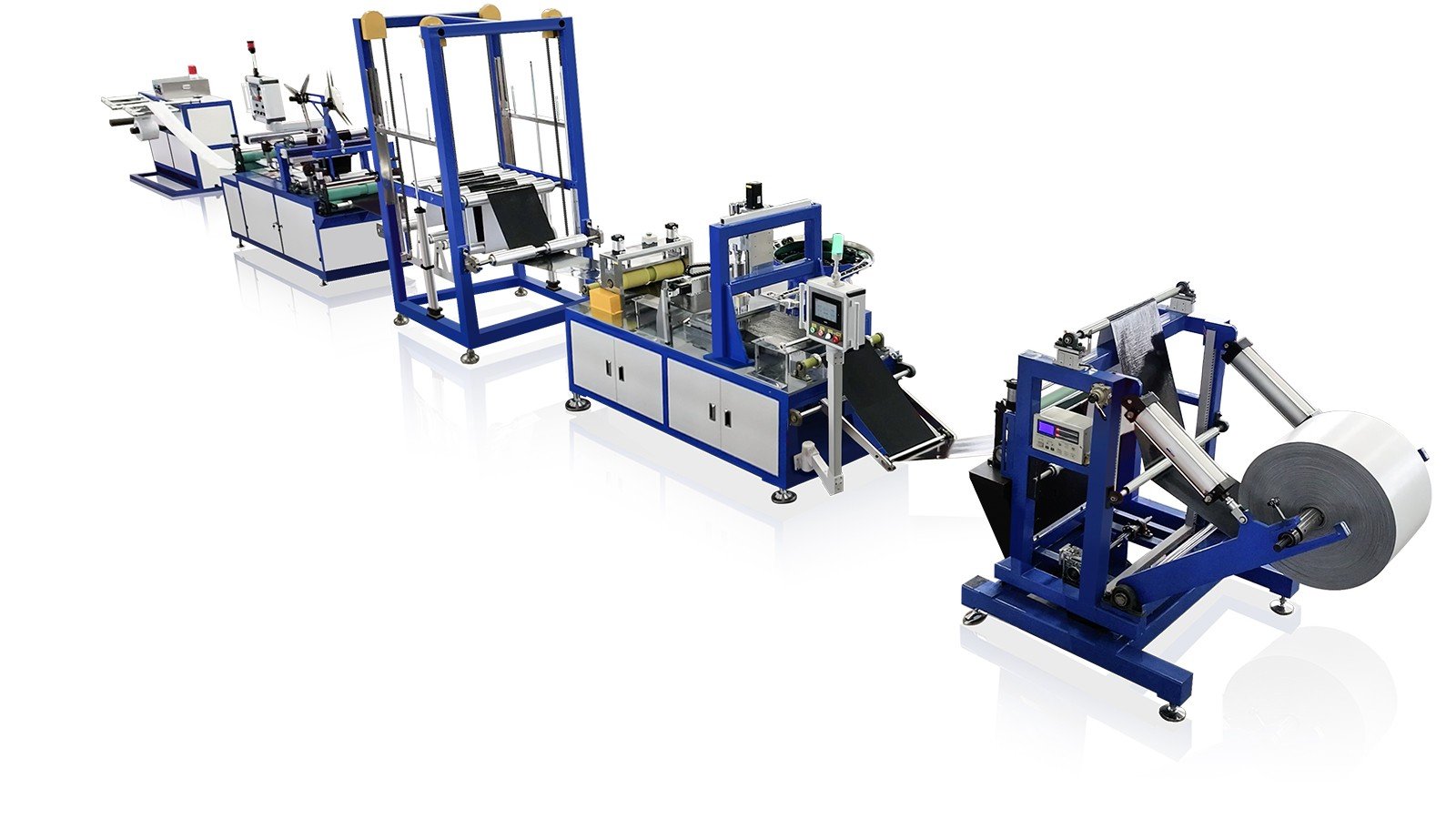

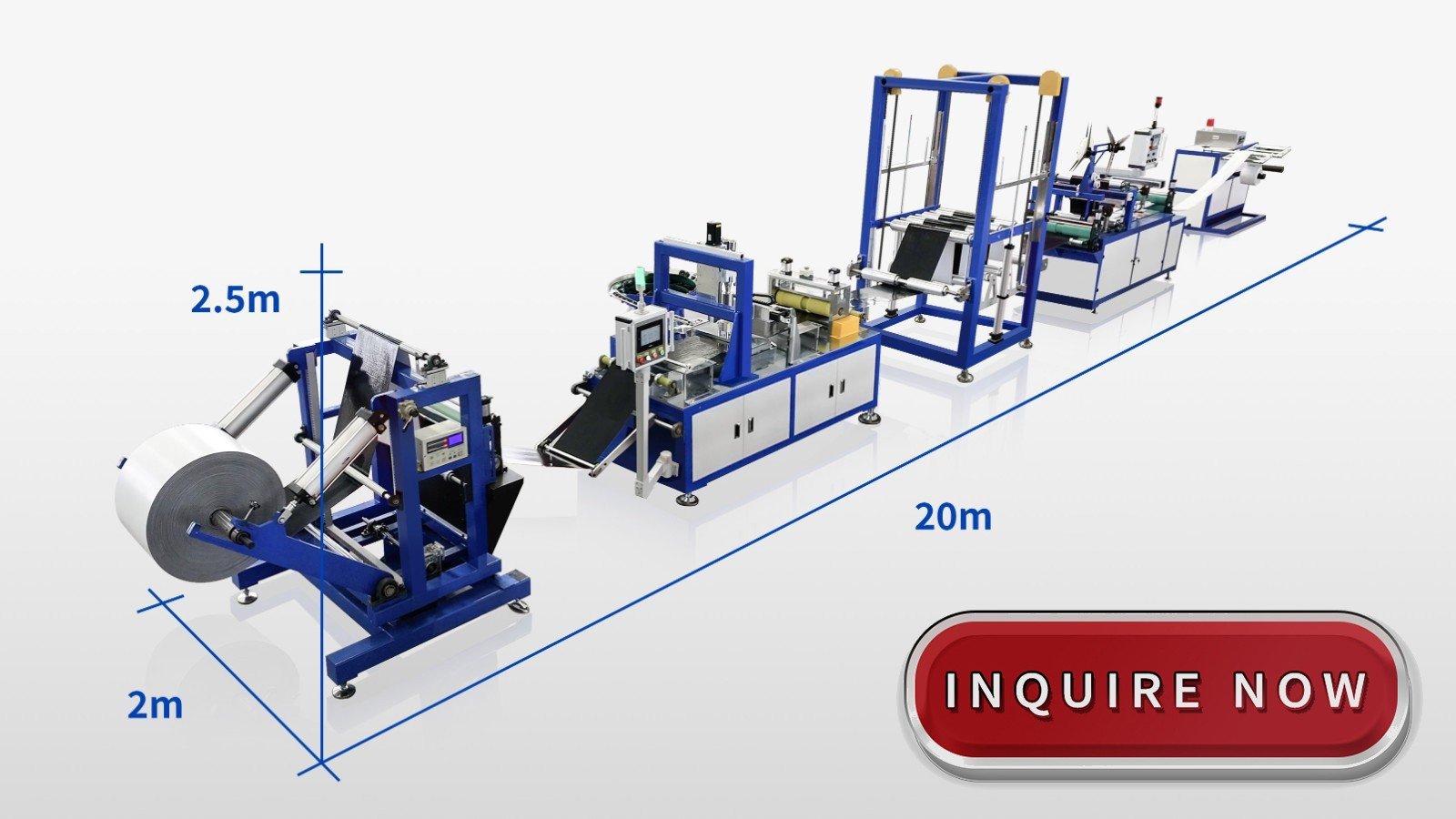

The production line integrates multiple processing stages into one coordinated system:

Unwinding → Hole Punching → Outlet Feeding → Welding → Hose Forming → Storage → Winding

PLC-based control allows the main units to operate as an integrated production system while supporting independent adjustment of individual sections when required.

Production Process

The flexible hose material is first supplied through the unwinding system with controlled tension.

The punching and positioning section prepares the required outlet positions. A vibration disc feeder automatically supplies the outlet joints to the welding unit, where the joints are connected to the hose using laser or ultrasonic welding.

After outlet installation, the hose passes through the forming and welding sections before entering the storage and winding units.

This continuous process reduces intermediate manual handling and provides a consistent production sequence from raw hose material to finished irrigation hose.

Core Equipment

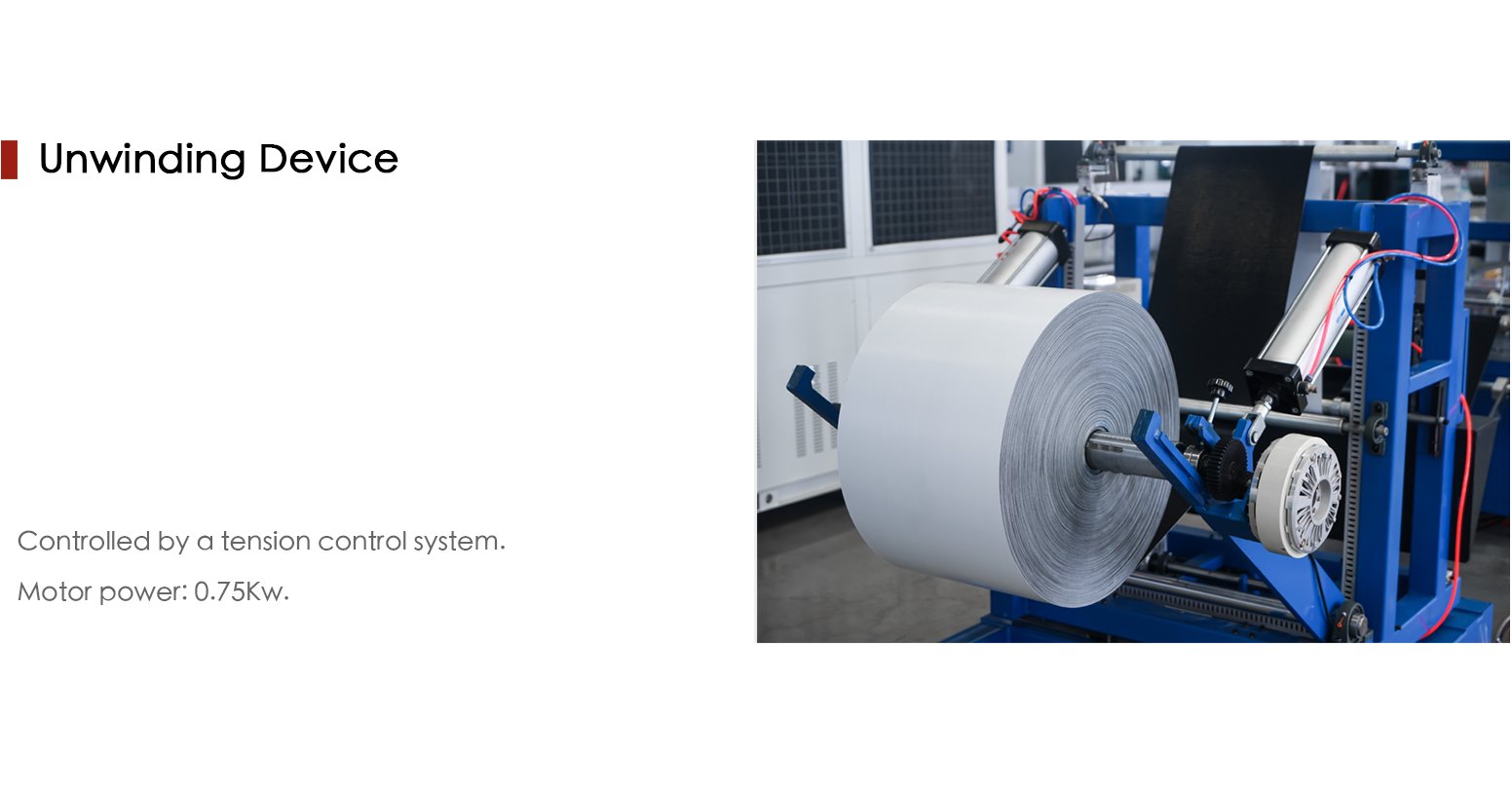

Unwinding System

The unwinding unit uses tension control to provide stable material feeding throughout the production process.

Consistent feeding is important for maintaining outlet positioning accuracy during high-speed continuous operation.

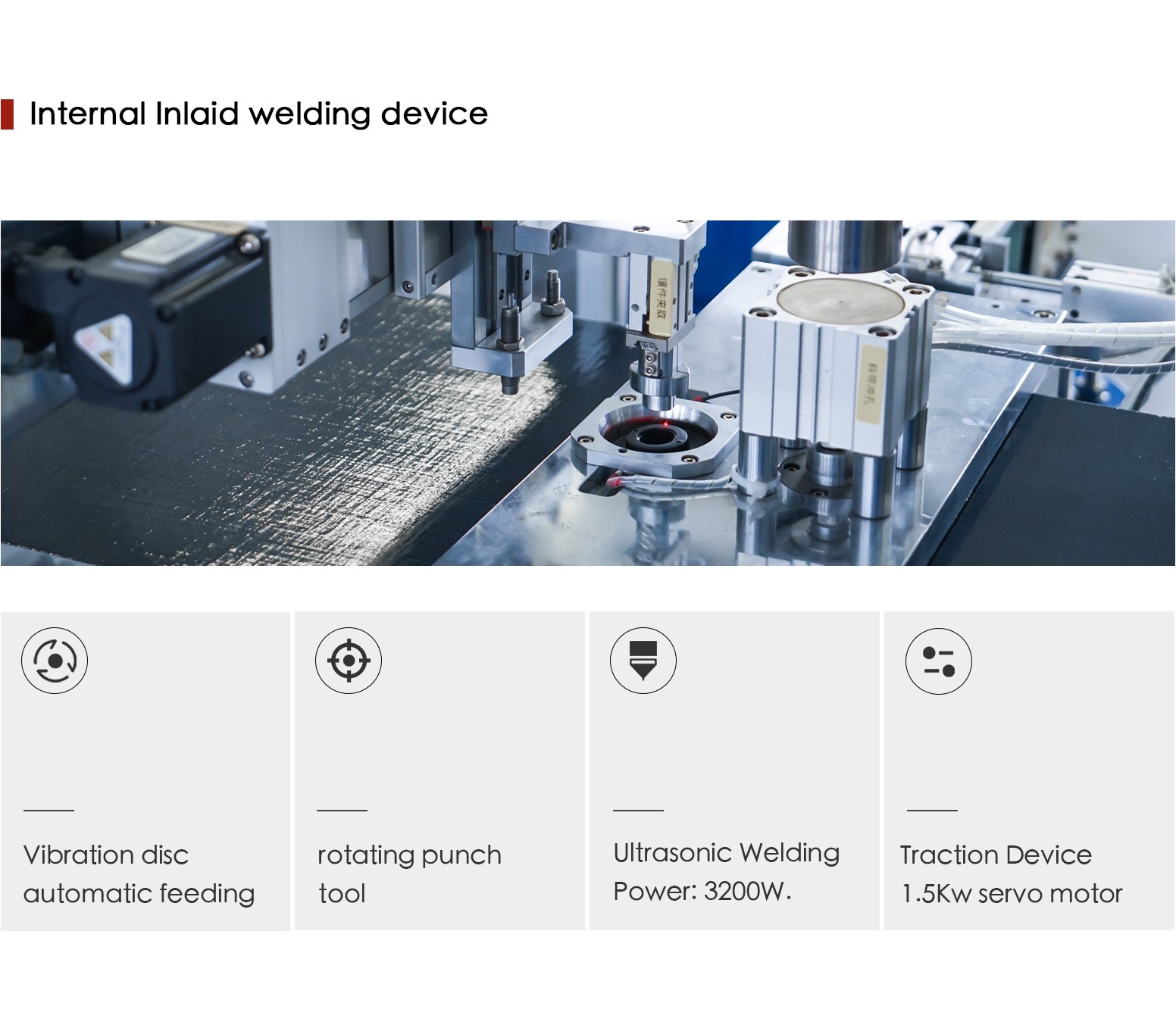

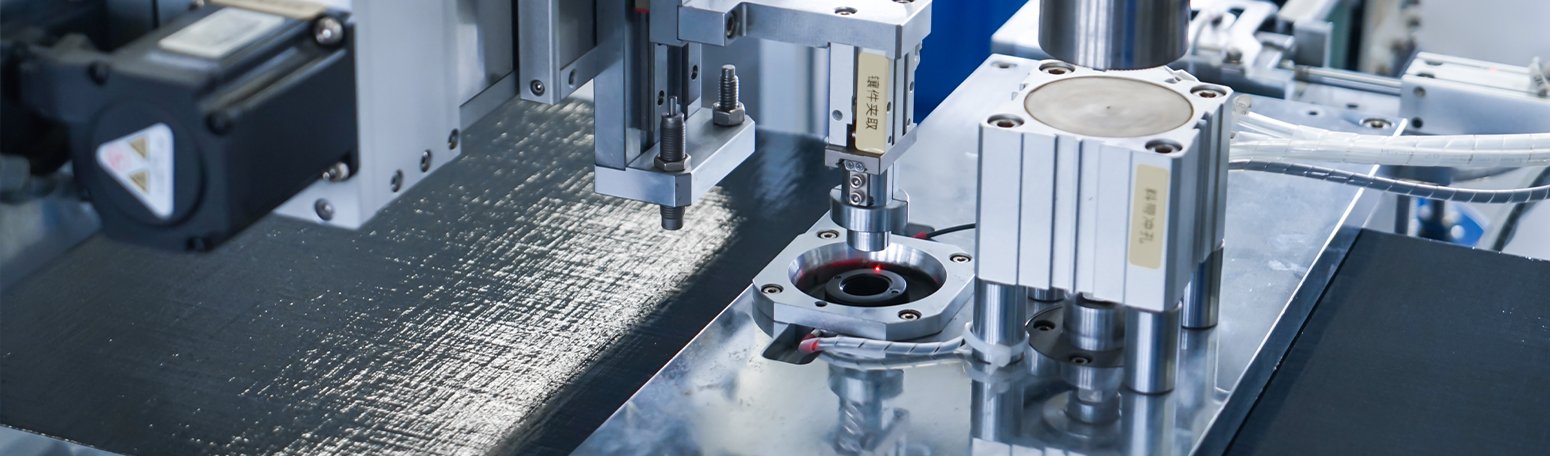

Outlet Feeding & Welding Unit

The outlet feeding section uses a vibration disc feeder to automatically orient and supply the water outlet joints.

A rotary punching mechanism prepares the required positions, followed by laser or ultrasonic welding according to the selected configuration.

The welding system is driven by a servo-controlled mechanism for coordinated material movement and outlet positioning.

Hose Storage System

A hose storage device provides buffering between the upstream welding process and downstream forming or winding sections.

This helps maintain continuous operation when the material flow between individual units needs to be temporarily balanced.

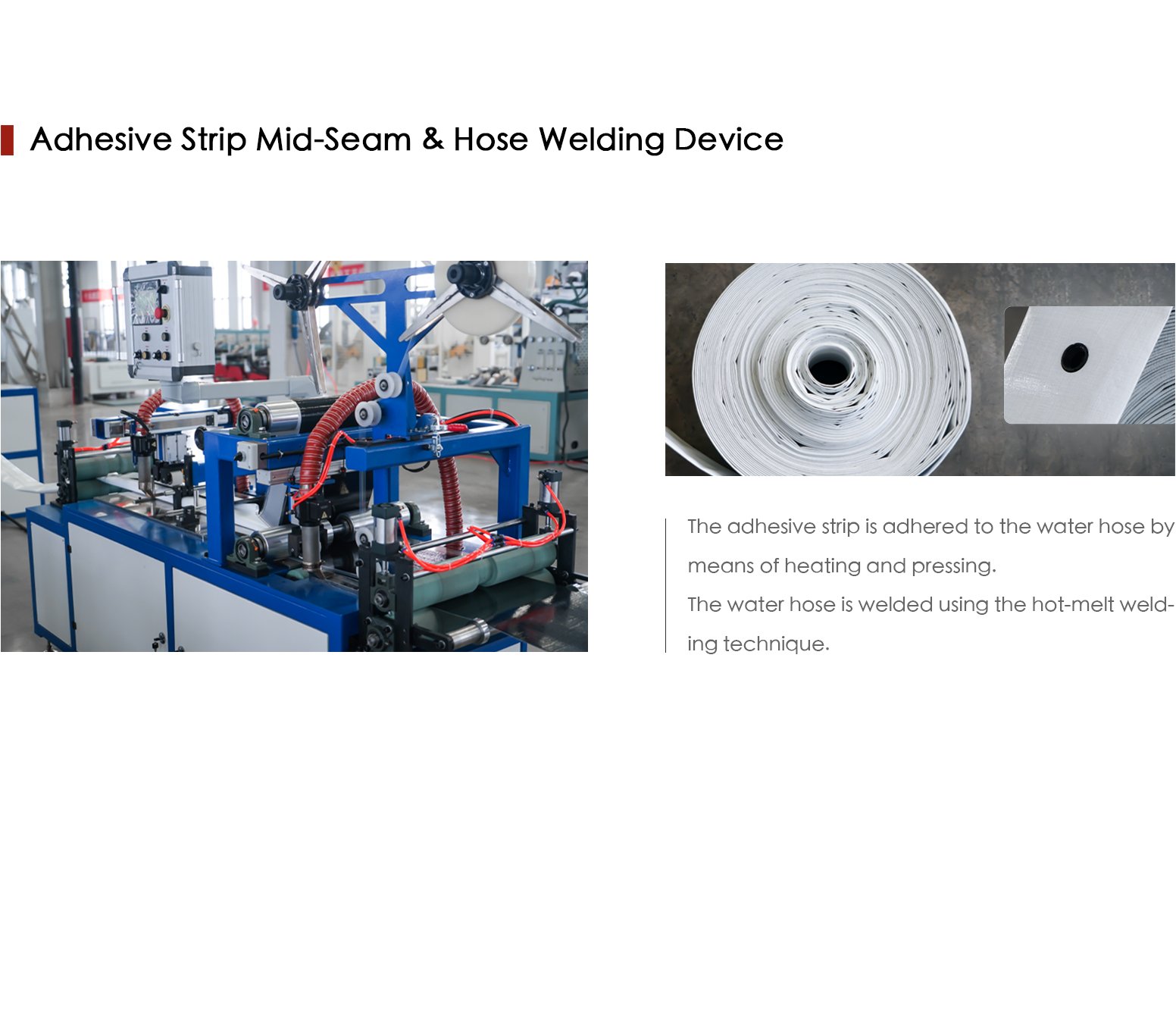

Hose Forming & Welding

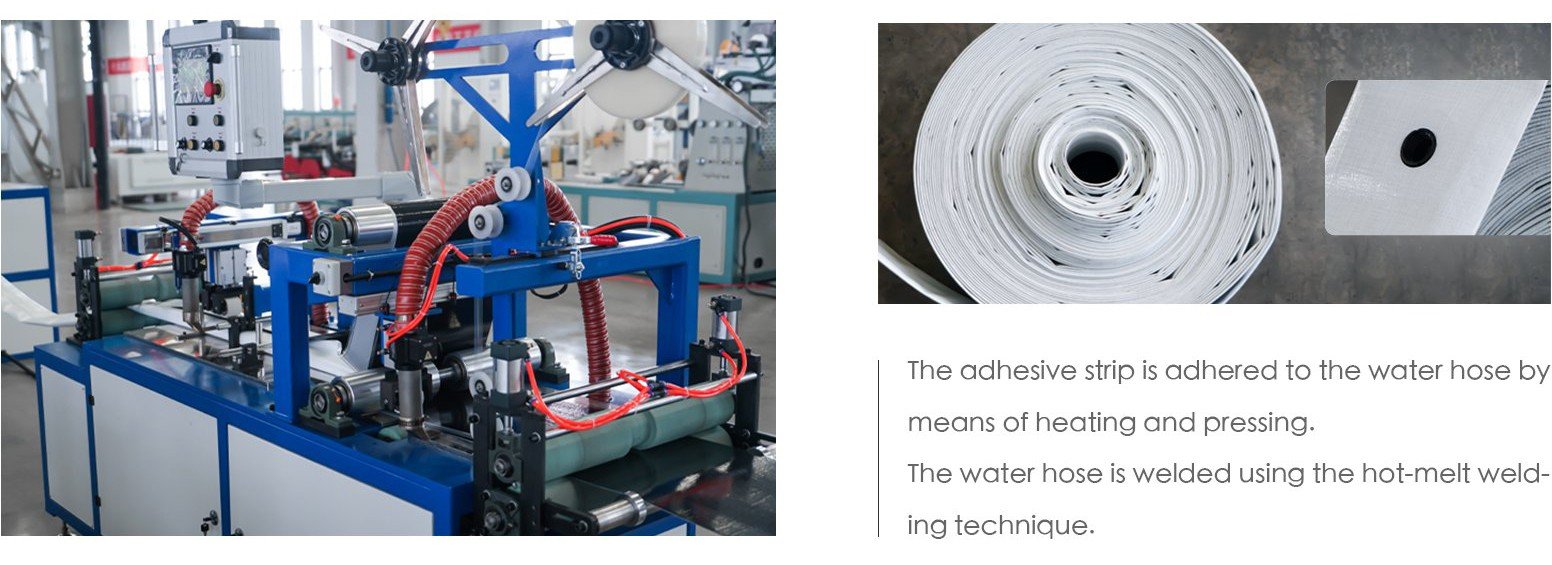

The forming section completes the hose structure after outlet installation. The production line can also include an adhesive strip mid-seam welding unit according to the selected hose construction.

Dual-Station Winding

The finished hose is collected by a dual-station winding system.

The winding unit is designed for continuous production and organized roll formation, reducing manual handling during the final production stage.

Multi-Layer Hose Structure

The production line can be configured for multi-layer flexible irrigation hose structures.

A white outer layer and black inner layer can be used according to the required product design and application. The final material structure, layer thickness and color configuration can be adjusted according to the customer's product requirements.

Applications

The finished pre-welded outlet flexible hose is designed for agricultural irrigation and water distribution applications where multiple water outlets are required along a flexible hose.

Typical applications include:

●  Open-field irrigation

●  Row crop irrigation

●  Greenhouse irrigation

●  Agricultural water distribution

●  Flexible irrigation systems

The outlet spacing and connection configuration can be selected according to the required irrigation layout.

Why Xindacheng

Xindacheng develops and manufactures irrigation production equipment, drippers, molds and plastic processing machinery.

For pre-welded outlet flexible hose projects, the production line can be configured around the customer's required hose structure, outlet type, welding method, spacing, production speed and winding requirements.

The integrated design allows outlet installation and hose manufacturing to be completed within one continuous production system.

Global Equipment Delivery

Xindacheng supplies irrigation production equipment to customers in international markets. Production lines are assembled, tested and prepared for overseas shipment according to the confirmed technical configuration.

Exhibition Experience

Xindacheng regularly participates in international plastics, irrigation and machinery exhibitions, presenting irrigation hose production equipment, drip irrigation machinery and related plastic processing technologies.

Cooperation & Industry Experience

Xindacheng works with customers and industry partners in different international markets, providing equipment solutions for irrigation hose manufacturing, drip irrigation products and plastic processing applications.

Request Technical Information

For a suitable production line configuration, please provide your required hose size, outlet type, outlet spacing, welding method, working pressure and target production speed.

Xindacheng can recommend the corresponding equipment configuration based on your product and production requirements.
