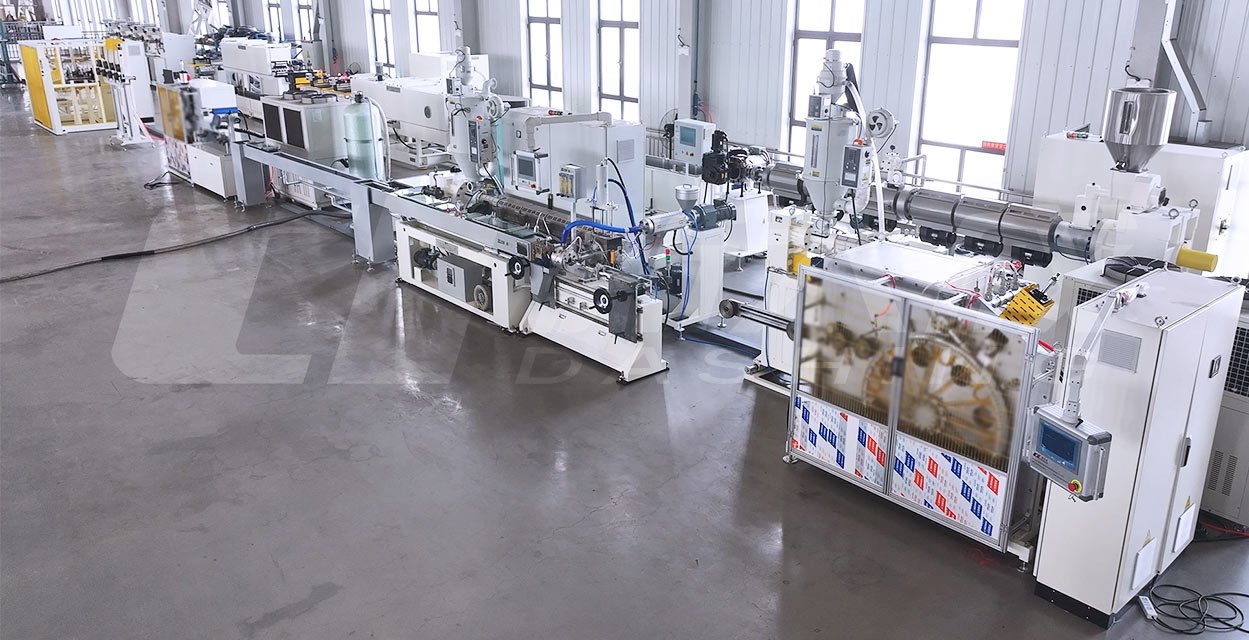

The Xindacheng T-tape drip irrigation production line integrates high-precision forming, high-speed perforation, and intelligent online inspection into one fully automated system.
By adopting advanced technology inspired by leading European processes, this line delivers stable production, excellent flow uniformity, and superior anti-clogging performance, making it ideal for modern agricultural irrigation manufacturing.

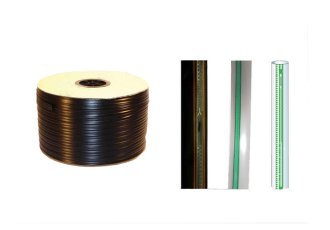

Internal tape drip irrigation pipe dripper, design of the turbulent flow is long enough to produce damping effect and decay the pressure. That makes the flow uniformity much better than flat dripper and single blade labyrinth irrigation pipe. It also have obvious advantage on anti-blocking. The water outlet, using slit type has construction which is similar to one-way valve. Water out-let will shut down when the pipe produced negative pressure. That prevent the pipe from absorb field soil and resistant grass root clogging, then the pipe will not be blocked by negative pressure.
Item | Pipe diameter | Pipe thickness | Production speed | Distance of dripper |
T-tape drip irrigation pipe machine | 12, 16, 20mm | 0.15mm-0.6mm | 300m/min | 60-80-100-150-200-300-500mm （Or as per customer's） |
● Extremely high irrigation uniformity, good flow index, it has much better hydraulic performance beyond comparison of other types of irrigation pipe.
● Extrusion welding forming one time, no joint, no rough selvedge, little chance burst under compression
● Much filter hole on flow inlet, high clogging resistance.
● Machinery perforate slot outlet. Avoid invasion of plant root and insect to block the dripper. The anti-block performance is better than other types since the special outlet design.
● Good energy dissipation since the extended turbulent flow, good flow index, and have certain compensation.
● Exclusive double blue strip make it easier to recognize on installation.
● This product have various pipe diameter and pipe thickness and it have certain compensation, so the laying length is longer.
Feature 1: Advanced Embossing Wheel Forming Technology
T-tape drip irrigation pipe forming device. (Xindacheng invention patent, patent No. ZL2012102831941)
Unlike traditional steel belt forming methods, Xindacheng uses a small embossing wheel forming process (Ø100–120 mm):
• Precisely engraved patterns control flow rate and emitter spacing
• Combined with a large cooling roller for synchronized forming and cooling
• Eliminates issues such as steel belt breakage and unstable tension
• Simple structure → lower maintenance cost & faster specification change
Result: More stable flow performance and consistent product quality
| Feature | Xindacheng | Traditional Equipment |
| Forming Method | Embossing wheel | Steel Belt |
| Stability | High | Unstable |
| Maintenance Cost | Low | High |
| Flow Accuracy | High | Medium |
| Anti-clogging | Strong | Limited |
Feature 2: High Uniformity & Anti-Clogging Internal Dripper Design
• Extended turbulent flow channel ensures pressure dissipation and stable output
• Significantly better flow uniformity than flat drippers
• Multiple inlet filter holes → strong anti-clogging capability
• Slit outlet with one-way valve structure:
- Prevents soil suction under negative pressure
- Avoids root intrusion and blockage
Ideal for challenging agricultural environments
Feature 3: High-Speed Intelligent Perforation System
Equipped with a PLC-controlled punching system, supporting both laser perforation and precision mechanical slitting:
• Speed up to 3000 holes/min
• Accurate and uniform hole size
• Flexible spacing customization
An online inspection system continuously monitors perforation and automatically adjusts hole position, ensuring consistent outlet alignment and product quality.
Feature 4: Precision Extrusion System
The production line uses a high-efficiency screw extruder combined with an advanced die head design:
• Uniform wall thickness
• Smooth melt flow channel
Supports ultra-thin pipe production down to 0.12 mm
Feature 5: Lightweight & Cost-Effective Output
Optimized structure allows:
• Strip weight as low as 1.6 g/m
• Material saving up to 0.6 g/m
• Strong bonding between strip and pipe
Significantly reduces production cost while maintaining high performance
Feature 6: Fully Automated Winding System
The line is equipped with a European-style parallel winding and accumulator system:
• Automatic winding, cutting, and roll changing
• Speed up to 450 m/min
• Servo-controlled precision
Reduces labor and improves production efficiency
Why Choose Xindacheng?
• Advanced technology comparable to European systems
• Fully automated and stable production line
• Lower investment with excellent ROI
• Proven performance in global irrigation projects
