Technical Specifications of EVA/POE Solar Film Production Line:
Custom configurations are available according to customer requirements.
Model | XDC-2200 | XDC-2200 | XDC-3000 |
Extruder | Φ160 | Φ180 | Φ180+180 |
Film Width | 2200mm | 2200mm | 3000mm |
Film Thickness | 0.02-0.10m'm | 0.02-0.10m'm | 0.02-0.10m'm |
Output Capacity | 600kg/h | 800kg/h | 1200kg/h |
Production Speed | 12m/min | 12m/min | 12m/min |
Film Type | EVA/POE | EVA/POE | EVA/POE |

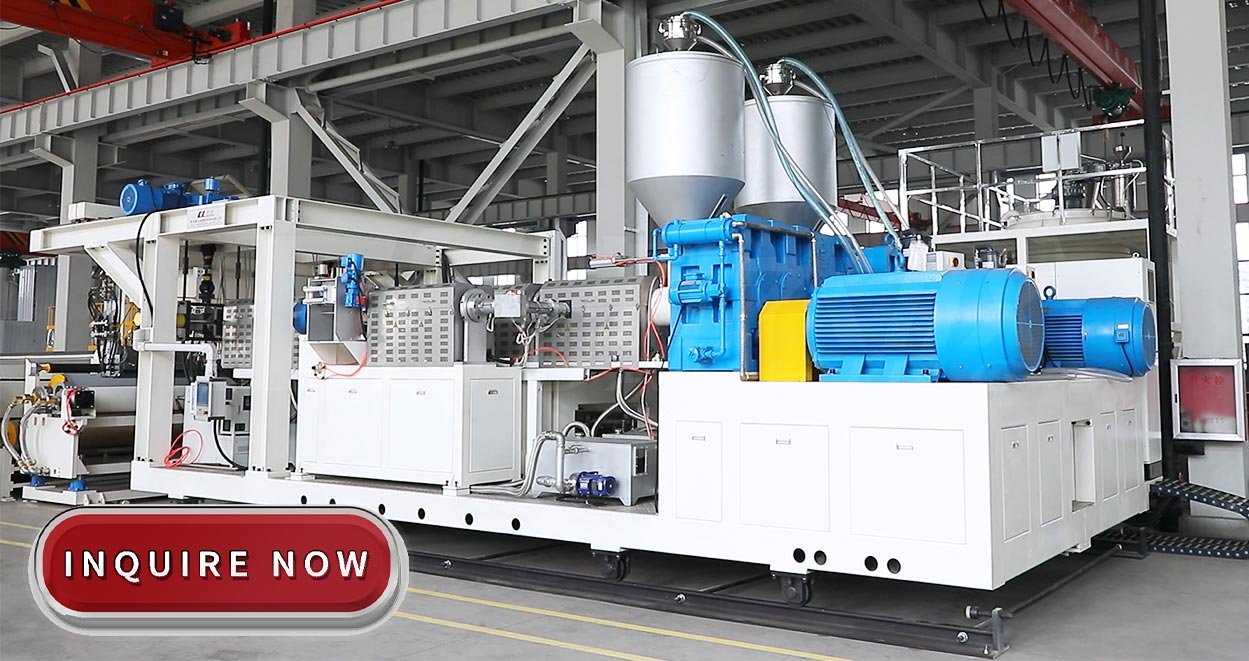

EVA/POE Solar Film Production Line for Photovoltaic Encapsulation Film Manufacturing
The EVA/POE solar film production line is a high-performance extrusion system specifically developed for manufacturing photovoltaic encapsulation films used in solar module production.
Suitable for EVA solar film, POE encapsulation film, EPE co-extruded film, photovoltaic backsheet lamination film, and optical-grade functional films, the production line combines precision extrusion technology, intelligent automation, and advanced temperature control to deliver excellent transparency, low shrinkage, and uniform thickness distribution.
Available in 2200mm and 3000mm configurations with outputs from 600kg/h to 1200kg/h, the equipment provides flexible production solutions for photovoltaic material manufacturers seeking high efficiency, stable operation, and superior film quality.
As a professional EVA/POE solar film production line manufacturer, Xindacheng provides customized photovoltaic encapsulation film extrusion solutions for solar module manufacturers worldwide.
Why Choose Xindacheng EVA/POE Solar Film Production Line?
Maximize Production Efficiency
The EVA/POE solar film production line adopts an optimized extrusion structure and intelligent control technology to ensure stable, continuous, and high-speed production. Excellent film flatness and uniform thickness distribution are maintained throughout the manufacturing process, helping photovoltaic material producers improve productivity and meet growing market demand.
Available in capacities up to 1200kg/h, the production line enables manufacturers to increase output while maintaining excellent product consistency.
Achieve Low-Shrinkage Film Performance
Advanced process design effectively minimizes film shrinkage while improving transparency and adhesion performance. The produced EVA and POE encapsulation films meet the stringent quality requirements of photovoltaic module lamination, ensuring long-term reliability and durability of solar panels.

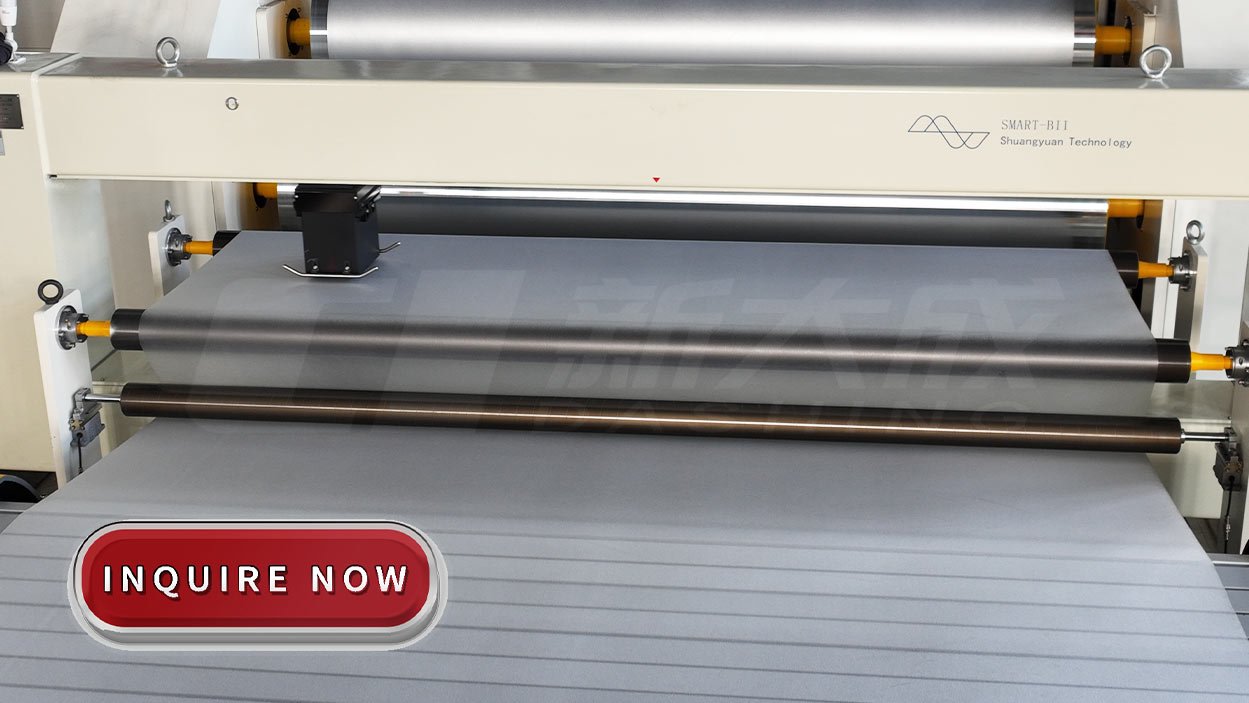

Ensure Precise Thickness Control
The integrated online thickness measurement and automatic gauge control system continuously monitors film thickness and automatically adjusts production parameters in real time. This significantly reduces material waste, improves product consistency, and enhances overall manufacturing efficiency.
Precise gauge control improves yield rates and minimizes production waste.
Reduce Energy Consumption
Optimized screw designs, efficient heating systems, and intelligent temperature control technologies contribute to lower energy consumption and reduced operating costs. Manufacturers can achieve high-quality film production while maintaining excellent energy efficiency.
Support Flexible Production Requirements
To accommodate various production needs, the line can be customized with different extrusion configurations, including:
● Single-screw extrusion systems;
● Multi-screw extrusion systems;
● Parallel twin-screw extrusion systems;
● Two-stage extrusion systems.
Flexible configurations allow customers to optimize raw material utilization, production efficiency, and final product performance according to specific project requirements.
Auxiliary Systems for High-Quality Film Production
Advanced Far-Infrared Annealing Technology
The far-infrared annealing system improves the release of internal film stress while maintaining precise temperature control. The stainless-steel structure and specialized insulation materials enhance thermal efficiency and reduce overall energy consumption.
Benefits include:
Improved dimensional stability;
Reduced film shrinkage;
Enhanced film performance;
Lower operating costs.

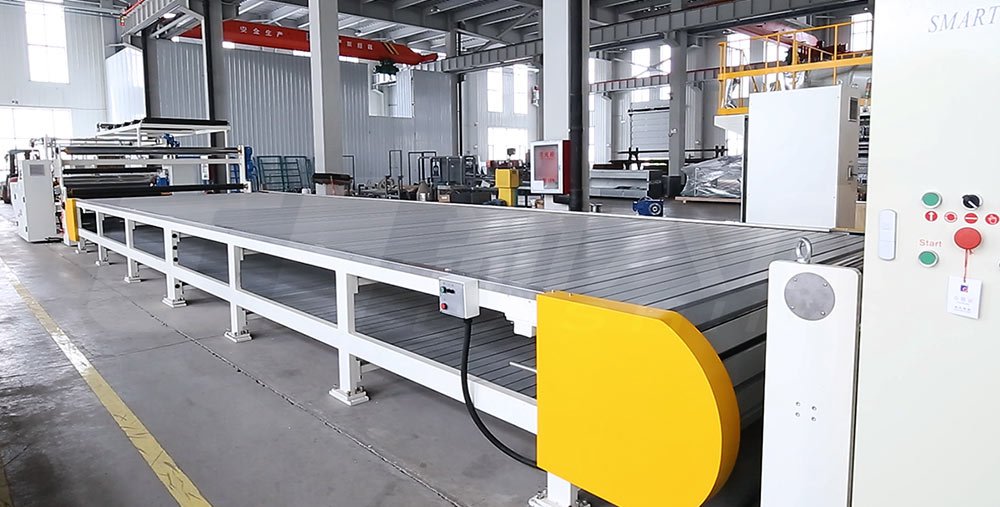

Reinforced Cooling and Shaping System
The production line adopts a reinforced five-roller cooling system combined with track cooling shaping technology to ensure efficient film formation.
This system provides:
Smooth film surfaces;
Stable cooling performance;
Wrinkle-free production;
Improved optical quality;
Enhanced dimensional accuracy.

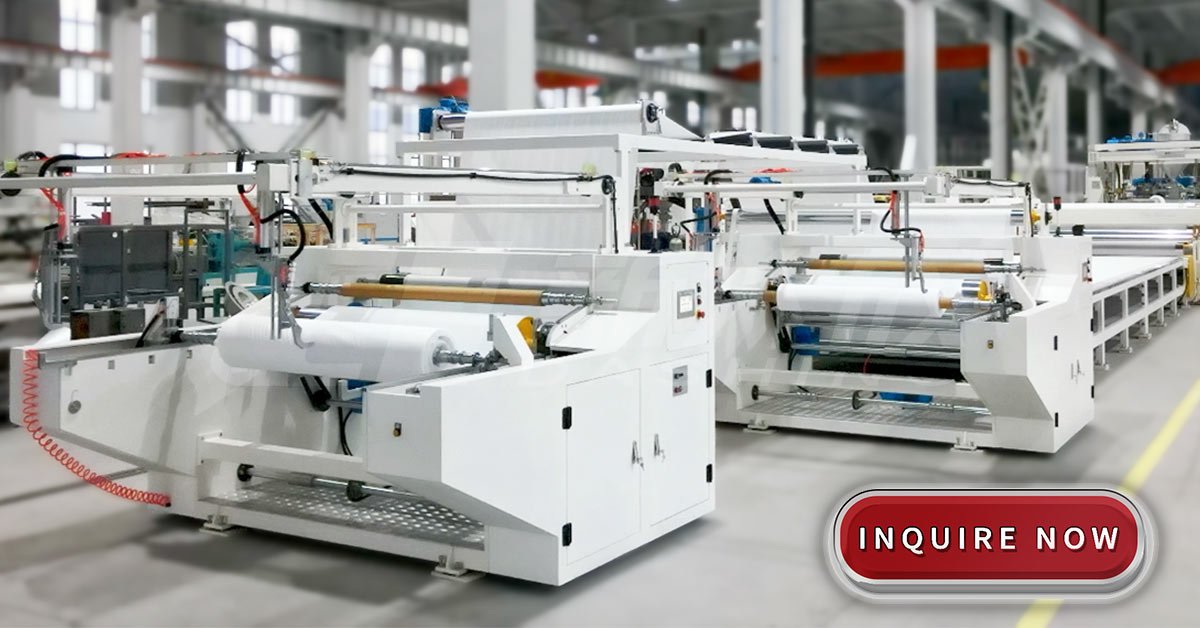

Automatic Winding System
The dual automatic winding and unwinding system improves continuous production efficiency and reduces manual operation requirements.
Advantages include:
Stable winding tension control;
Improved finished roll quality;
Increased production efficiency;
Reduced labor intensity.

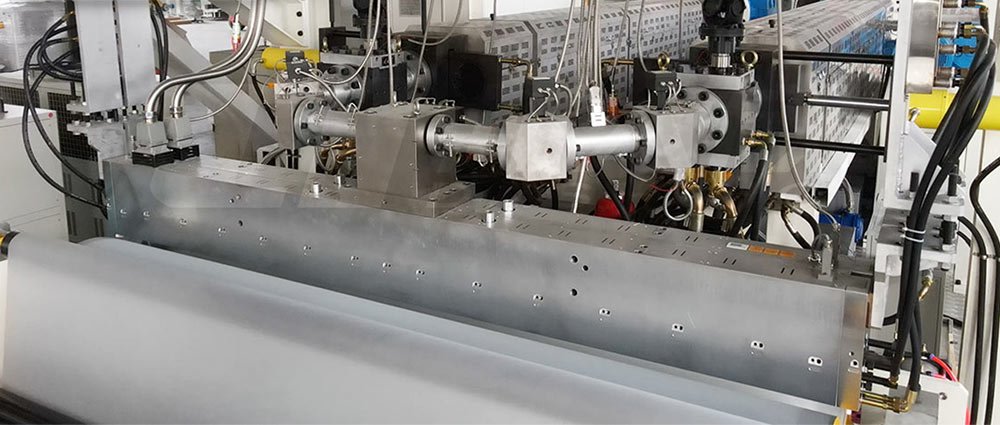

Core Technologies Behind Stable Solar Film Production

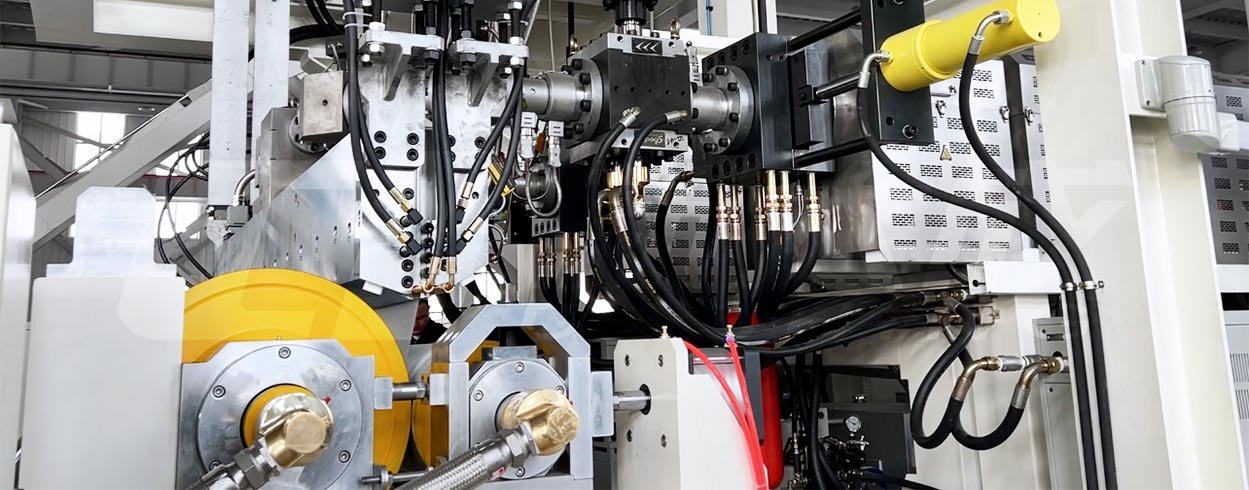

Excellent Plasticization Performance
Xindacheng specially designed screw extruders are optimized according to the plasticization characteristics of EVA and POE materials, featuring:
● Stable extrusion pressure
● High output efficiency
● Uniform melt distribution
● Energy-saving operation
● Improved raw material plasticization

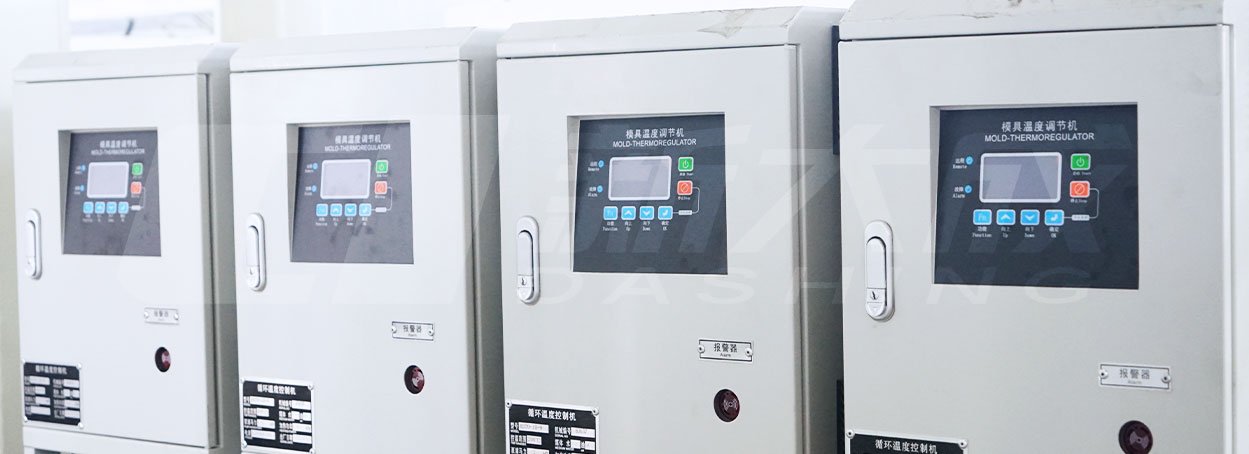

Precision Temperature Control System
The advanced temperature control cabinet supports:
● Over-temperature alarm
● Low-temperature alarm
● Automatic data storage
● Formula memory function
Temperature monitoring points are installed on screws, screen changers, distributors, melt pumps, and molds to ensure stable and accurate temperature control during production.
Stable Melt Filtration System
The hydraulic screen changer system ensures continuous production and stable melt filtration, improving film purity and overall encapsulation film quality.
Precision Melt Metering System
The melt metering pump with water-cooling system provides stable melt pressure and accurate extrusion output, ensuring consistent film thickness and smooth surface quality.
Optimized Flow Channel & T-Die Design
The optimized distributor flow channel and precision T-die mold design improve melt uniformity, film flatness, and optical transparency performance.
Applications of EVA/POE Solar Film Production Line
| Application | End Product |
| Photovoltaic Industry | EVA solar encapsulation film |
| Solar Module Manufacturing | POE encapsulation film |
| Composite Film Industry | EPE co-extruded film |
| Building Materials | Laminated safety glass interlayer film |
| Acoustic Glass Industry | Soundproof glass interlayer film |
| Optical Film Industry | Functional optical films |
Turnkey Solar Film Manufacturing Solution
We provide complete turnkey engineering solutions for photovoltaic encapsulation film production projects, including:
● Plant layout design
● Utility engineering support
● Extrusion process planning
● Equipment installation & commissioning
● Technical training
● Production optimization support
Xindacheng mature EVA/POE solar film extrusion technology helps customers achieve stable production, low shrinkage, precise thickness control, and high-quality photovoltaic encapsulation film manufacturing.
Frequently Asked Questions
What is an EVA solar film production line?
An EVA solar film production line is an extrusion system designed to manufacture photovoltaic encapsulation films used in solar panel module lamination.
What is the difference between EVA and POE solar films?
EVA films provide excellent adhesion and processability, while POE films offer superior moisture resistance and PID resistance.
What raw materials can be processed?
The production line is suitable for EVA, POE, and EPE materials used in photovoltaic encapsulation film manufacturing.
What output capacities are available?
Xindacheng solar film production lines are available in capacities ranging from 600kg/h to 1200kg/h.
Can the production line be customized?
Yes. Width, output capacity, extrusion configuration, and automation level can be customized according to project requirements.
What services does Xindacheng provide?
We provide turnkey solutions including plant layout design, installation, commissioning, operator training, and after-sales technical support.
