Flat dripper irrigation pipe making machine

Extrusion System Advantages

  • Servo-Driven Main Motor (Optional): Available with a servo-driven main motor to improve drive control and reduce energy consumption. Energy savings of up to 30% may be achieved under suitable operating conditions.

  • Low-Temperature Plasticization: Adopts a low-temperature plasticization design concept to support stable processing of different raw materials.

  • L/D Ratio 38:1: The extruder features an L/D ratio of 38:1 and is designed to process different raw materials from various suppliers and brands, supporting high-speed extrusion.

  • ABA / AB Coextrusion: Supports ABA or AB coextrusion configurations according to product structure and manufacturing requirements.

PRODUCTDETAILS

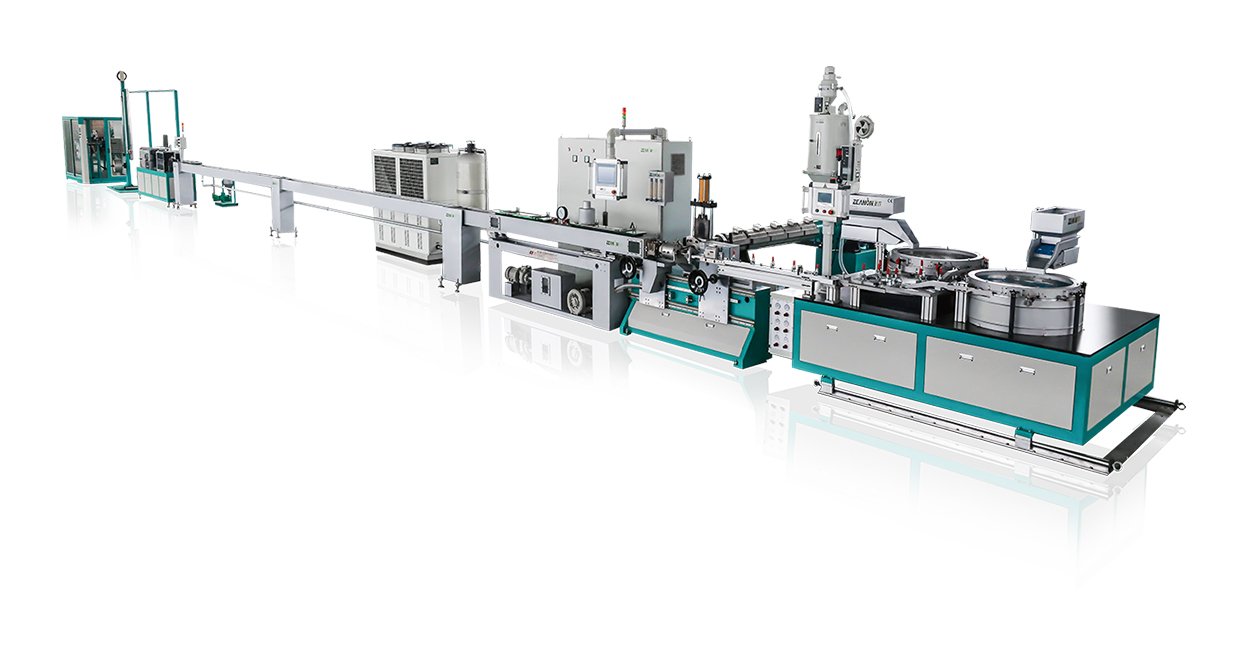

The Xindacheng flat emitter drip irrigation pipe production line is designed for high-speed manufacturing of flat emitter drip irrigation pipes. Integrating extrusion, automatic dripper feeding, screening, punching, online inspection and automatic winding, the line achieves production speeds of up to 450 m/min.

Technical Specifications

Parameter

Specification

Pipe diameter

Φ12–25 mm

Wall thickness

0.12–0.6 mm / 0.2–1.0 mm

Production speed

Up to 450 m/min

Dripper spacing

100–1500 mm

Dripper screening capacity

Up to 4500 pcs/min

Punching speed

Up to 4000 times/min

Control system

PLC

Actual production speed depends on pipe specifications, dripper spacing and operating conditions.

Key Features of Flat Emitter Drip Pipe Production Line

High-Speed Extrusion

Designed for continuous flat emitter drip pipe production at speeds of up to 450 m/min, with adjustable extrusion die configuration.

Automatic Dripper Feeding and Screening

Servo-driven dripper positioning and dual screening units support accurate dripper placement and automatic identification of unqualified drippers.

Multi-Unit Punching System

Configurable with one to four punching units, using mechanical or rotary punching according to pipe specifications.

Online Inspection System

Image recognition technology monitors punching conditions, detects abnormalities and stores inspection information.

Fully Automatic Winding

Integrates pipe displacement, winding, metering, cutting, roll changing, packaging and unloading.

Customized Production Line Configuration

The production line can be configured according to pipe diameter, wall thickness, dripper type, dripper spacing, punching requirements and target production speed.

Contact Xindacheng to discuss the appropriate flat emitter drip irrigation pipe production line for your manufacturing needs.
