PC Dripper Manufacturing Process: From Injection Molding to Final Assembly

Pressure compensating drippers are widely used in irrigation systems where controlled and consistent water delivery is required. Producing these drippers involves several stages, from molding individual components to assembling the internal pressure-regulating structure.

For manufacturers planning a PC dripper production project, understanding the complete manufacturing process is useful when evaluating molds, injection molding equipment and assembly equipment.

What Is a PC Dripper?

A PC dripper, or pressure compensating dripper, is designed to regulate water flow within its intended operating pressure range.

Unlike a conventional dripper whose flow can be more directly affected by pressure changes, a pressure compensating dripper contains an internal regulating structure.

Because of this structure, manufacturing a PC dripper generally involves both component production and accurate assembly.

Step 1: Define the PC Dripper Design

The manufacturing process starts with the product design.

The dripper structure determines the requirements for:

●  Dripper dimensions

●  Internal flow path

●  Component configuration

●  Pressure-regulating element

●  Assembly method

●  Mold design

●  Production equipment

Before selecting machinery, manufacturers should have drawings or samples showing the complete dripper structure.

This information helps equipment suppliers understand how the components need to be produced and assembled.

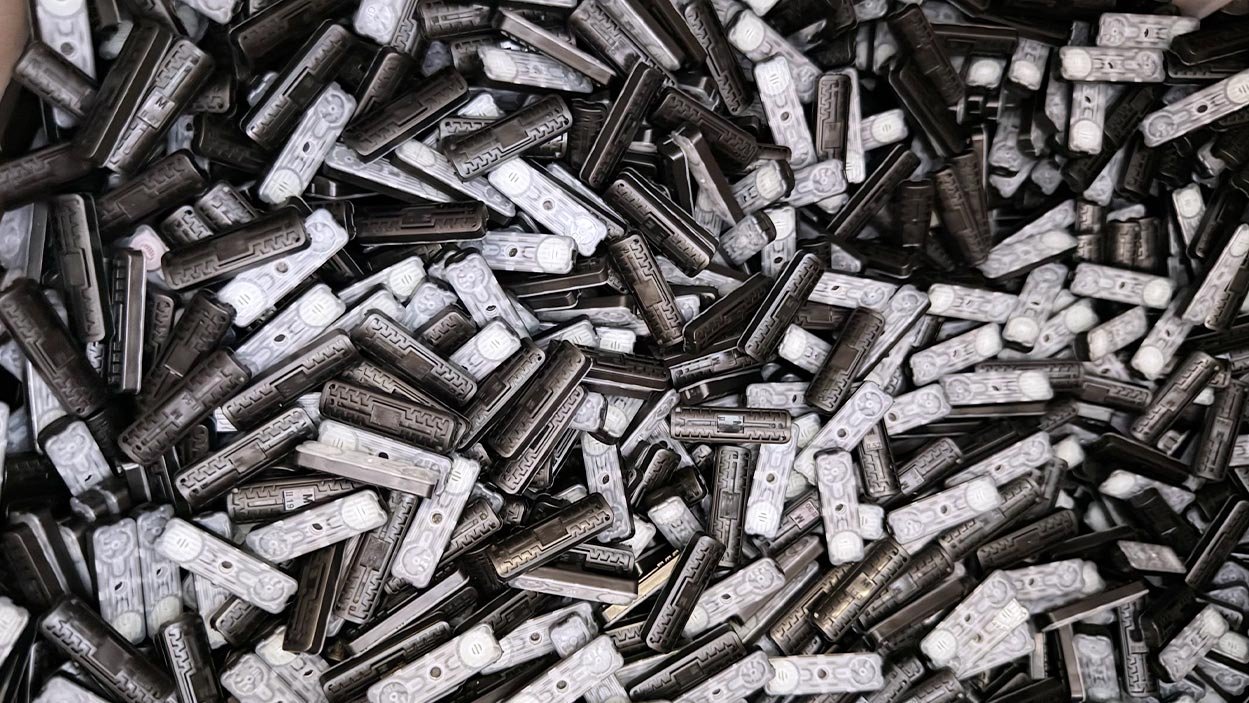

Step 2: Produce Dripper Components by Injection Molding

Many plastic dripper components are produced through injection molding.

The injection molding stage converts plastic material into the required dripper components using a dedicated mold.

The mold design needs to correspond to the product geometry and production requirements.

For manufacturers, important considerations may include:

●  Component dimensions

●  Mold cavity configuration

●  Material requirements

●  Required production capacity

●  Product consistency

The injection molding stage provides the individual components needed for subsequent assembly.

Step 3: Dripper Mold Design

The dripper mold is an important part of PC dripper production.

Different dripper structures may require different mold configurations. The mold must reproduce the required geometry accurately while allowing the molded components to be removed and processed efficiently.

For manufacturers producing multiple dripper models, mold design can also affect product changeover and production flexibility.

A suitable mold should therefore be considered together with the intended dripper design and production volume.

Step 4: Prepare the Internal Components

A pressure compensating dripper may contain several individual components.

One important element is the pressure-regulating elastic component used in the PC dripper structure.

Before assembly, these components need to be prepared and supplied to the assembly equipment.

The feeding method depends on the component shape, dimensions and assembly requirements.

Consistent component feeding is important because incorrect orientation or positioning can affect the subsequent assembly process.

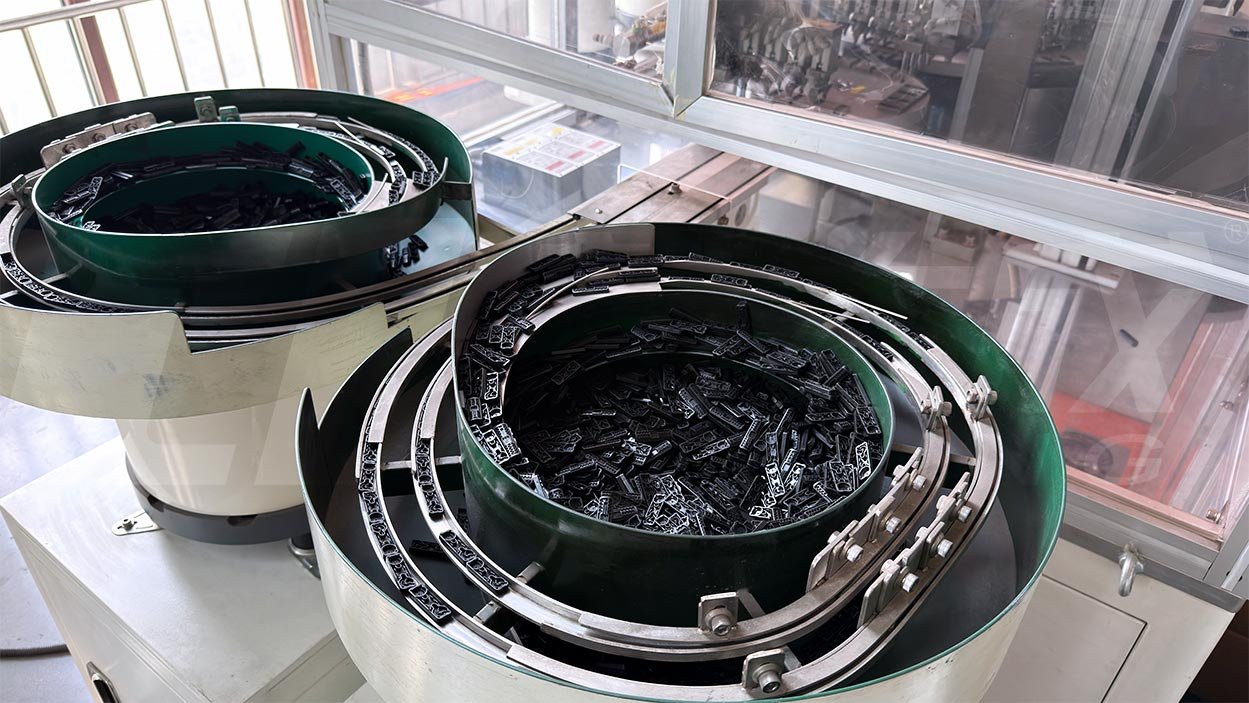

Step 5: Component Feeding and Positioning

Once the molded dripper components and internal parts are available, they need to be brought to the correct assembly position.

An automated dripper assembly system can integrate component feeding and positioning according to the product structure.

The objective is to ensure that each component reaches the correct position before assembly.

For PC drippers, this stage is particularly important because the internal pressure-regulating component needs to be installed according to the intended product design.

Step 6: Install the Pressure-Regulating Elastic Component

The installation of the pressure-regulating elastic component is a key stage in the assembly of a pressure compensating dripper.

The component needs to be positioned correctly inside the dripper structure.

The assembly equipment can be designed around the specific dimensions and structure of the component.

Because PC drippers can have different internal designs, the assembly method should be evaluated according to the actual product drawing rather than assuming that one assembly configuration is suitable for every dripper.

Step 7: Complete the Dripper Assembly

After the internal components are positioned, the dripper can be assembled into its finished configuration.

The assembly process should maintain consistent positioning between the individual components.

For automated production, the assembly equipment can combine feeding, positioning and installation into a continuous workflow.

This can help manufacturers reduce manual handling and maintain consistent production conditions.

Step 8: Finished Dripper Inspection

After assembly, finished PC drippers can be inspected according to the manufacturer's quality requirements.

Depending on the product and application, manufacturers may evaluate:

●  Appearance

●  Component positioning

●  Assembly condition

●  Flow characteristics

●  Pressure response

●  Product consistency

Testing requirements should be established according to the intended irrigation application and product specifications.

PC Dripper Manufacturing Equipment

A complete PC dripper manufacturing project may involve several equipment stages.

Dripper Injection Molding Equipment

Used to produce molded plastic dripper components.

Dripper Molds

Used to form the required component geometry.

Component Feeding Equipment

Used to supply individual parts to the assembly position.

PC Dripper Assembly Machine

Used to assemble the dripper components and install the pressure-regulating elastic component.

These stages can be considered separately or as part of a broader dripper manufacturing project, depending on the manufacturer's production requirements.

What Information Is Needed Before Selecting Equipment?

Manufacturers looking for PC dripper manufacturing equipment should provide sufficient product information before equipment selection.

Useful information includes:

Product Information

●  PC dripper drawing

●  Product dimensions

●  Product samples

●  Material information

Internal Component Information

●  Component drawings

●  Component dimensions

●  Component material

●  Assembly position

●  Required installation method

Production Requirements

●  Target output

●  Number of dripper models

●  Required automation level

●  Working schedule

●  Future product requirements

These details allow the equipment configuration to be evaluated based on the actual product rather than a general machine category.

Can PC Dripper Production Be Automated?

Yes, different stages of PC dripper manufacturing can be automated depending on the product structure and production requirements.

Injection molding can be organized for continuous component production, while automated feeding and assembly equipment can be used for subsequent assembly operations.

The appropriate automation level depends on production volume, component design, product variations and the desired manufacturing workflow.

For manufacturers with higher production requirements, integrating component production and automated assembly can help establish a more consistent production process.

PC Dripper Production for Irrigation Applications

PC drippers can be used in various irrigation applications, including agricultural irrigation, greenhouse cultivation, orchard irrigation and other controlled irrigation systems.

The final dripper design should be selected according to the intended application and operating conditions.

From an equipment perspective, the production process should be designed around the actual dripper rather than selecting individual machines independently.

A coordinated approach can help ensure that the mold, injection molding process, component feeding and final assembly are compatible.

Conclusion

The PC dripper manufacturing process involves more than producing a molded plastic component. A typical production workflow can include product design, injection molding, dripper mold production, component preparation, feeding, installation of the pressure-regulating elastic component and final assembly.

For manufacturers planning a pressure compensating dripper production project, the most important starting point is the actual dripper design and its internal component structure.

Once these requirements are defined, suitable injection molding equipment, dripper molds and PC dripper assembly equipment can be evaluated as part of the overall production process.
