The Drip Tape & Drip Pipe Winder is used at the downstream section of drip irrigation tape and drip irrigation pipe production lines. It is available in automatic and semi-automatic configurations for different winding and roll-handling requirements.
Automatic models can integrate winding, line arranging, meter counting, cutting and roll changing. The automatic drip pipe coiler can also be equipped with an online packaging system as an optional function.
Drip Tape Winder
Semi-Automatic Drip Tape Winder
The semi-automatic drip tape winder is suitable when some winding or roll-handling operations are completed manually. The configuration can be selected according to the drip tape specification, required roll length and production requirements.
Automatic Drip Tape Winder
The automatic drip tape winder is designed for continuous winding of extruded drip irrigation tape.
It adopts double-station winding with servo motor drive and an automatic line arranger controlled by a servo motor. The PLC and HMI system allows operators to control the winding process and set the required winding length.
Key specifications:
● Winding speed up to 450 m/min
● Core outer diameter: 600 mm
● Wall thickness: 0.12–0.6 mm
● Winding length: ≤3000 m/roll
● Automatic meter counting
● Automatic cutting and roll changing
Drip Pipe Coiler
Semi-Automatic Drip Pipe Winder
The semi-automatic drip pipe winding solution is intended for manufacturers who do not require a fully automatic roll-changing and unloading process. The configuration can be matched to the pipe specification and production requirements.

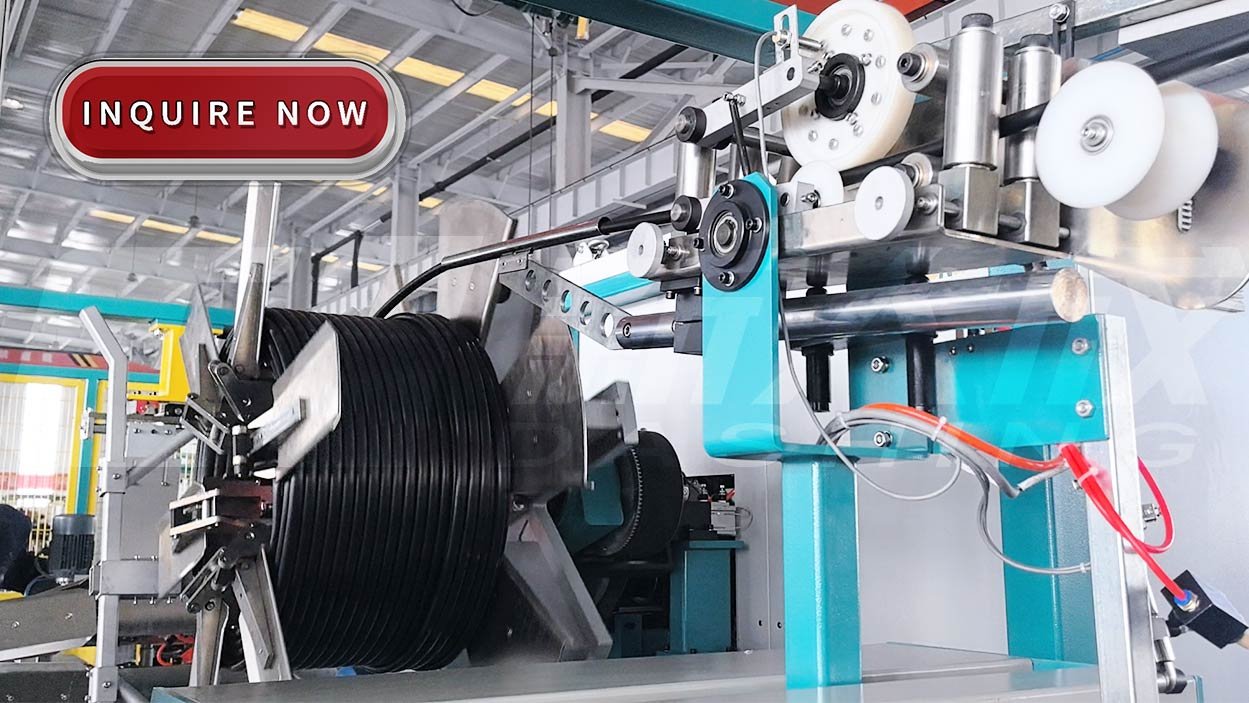

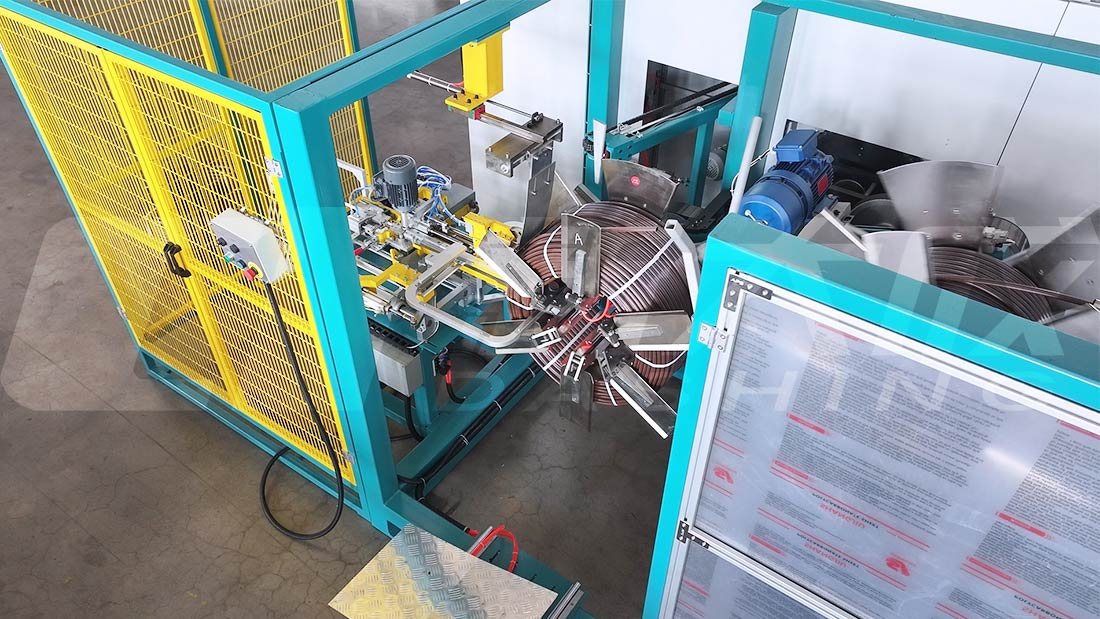

Automatic Drip Pipe Coiler
The automatic drip pipe coiler is designed for winding drip irrigation pipe after extrusion. It performs automatic winding, line arranging and meter counting, with automatic cutting, roll changing and unloading.
The coiler uses double-station winding with torque motor control. A storage device in the corresponding B/C configuration helps store the pipe during roll changing, allowing continuous production and helping prevent the pipe from falling onto the floor.
The listed speed is:
● 100 m/min without automatic online packaging
● 120 m/min with automatic online packaging
Online packaging is available as an optional function.
Main Features
Automatic line arranging:
The automatic line arranger helps maintain an orderly winding arrangement of drip tape or drip pipe.
Meter counting:
The winding system provides reliable meter counting, with the required winding length set according to production requirements.
Double-station winding:
The automatic drip tape winder uses servo motor drive, while the automatic drip pipe coiler uses torque motor control.
Automatic roll handling:
Automatic configurations can perform cutting, roll changing and unloading. Online packaging can be added to the automatic drip pipe coiler.
Technical Parameters
| Item | Drip Tape Winder | Drip Pipe Coiler |
|---|---|---|
| Speed | Up to 450 m/min | 100 / 120 m/min* |
| Winding | Double station | Double station |
| Drive | Servo motor | Torque motor |
| Line arranging | Automatic | Automatic |
| Meter counting | Yes | Yes |
| Cutting | Automatic | Automatic |
| Roll changing | Automatic | Automatic |
| Online packaging | — | Optional |
*100 m/min without online packaging; 120 m/min with automatic online packaging.
Which Winder Do You Need?
For drip irrigation tape, the automatic winder is suitable for high-speed winding, with a listed speed of up to 450 m/min and winding length up to 3000 m per roll.
For drip irrigation pipe, the automatic pipe coiler provides automatic winding and roll handling, with optional online packaging. The speed is 100 m/min without online packaging and 120 m/min with the packaging system.
The final configuration should be selected according to the product specification, roll length, production speed and required automation level.
FAQ
What is a drip tape winder used for?
It is used to wind extruded drip irrigation tape into rolls and can provide meter counting, line arranging, cutting and roll changing depending on the configuration.
What is an automatic pipe coiler?
An automatic pipe coiler is used to wind drip irrigation pipe and can integrate winding, line arranging, meter counting, cutting, roll changing and unloading.
What is the drip tape winding speed?
The listed speed is up to 450 m/min.
Does the drip pipe coiler support online packaging?
Yes. Online packaging is available as an optional function.
Are semi-automatic winders available?
Yes. Semi-automatic configurations are available for both drip tape and drip pipe applications.
Request a Drip Tape or Drip Pipe Winder
Send us your product type, required roll length, production speed and automation requirements to discuss the suitable winding-machine configuration.
