PP Strap Manufacturing Process: How a PP Strapping Extrusion Line Works

Introduction

PP strapping is a polypropylene packaging material commonly used for carton sealing, palletizing, logistics and general industrial packaging. Its production may appear straightforward, but achieving consistent strap width, thickness, strength and winding quality requires coordinated control throughout the manufacturing process.

A complete PP strapping extrusion line integrates multiple processing stages into a continuous production system. The exact configuration can vary according to the required strap dimensions, production capacity, raw material and level of automation.

Understanding the PP strap manufacturing process is therefore useful when planning a new production project or evaluating an existing production line.

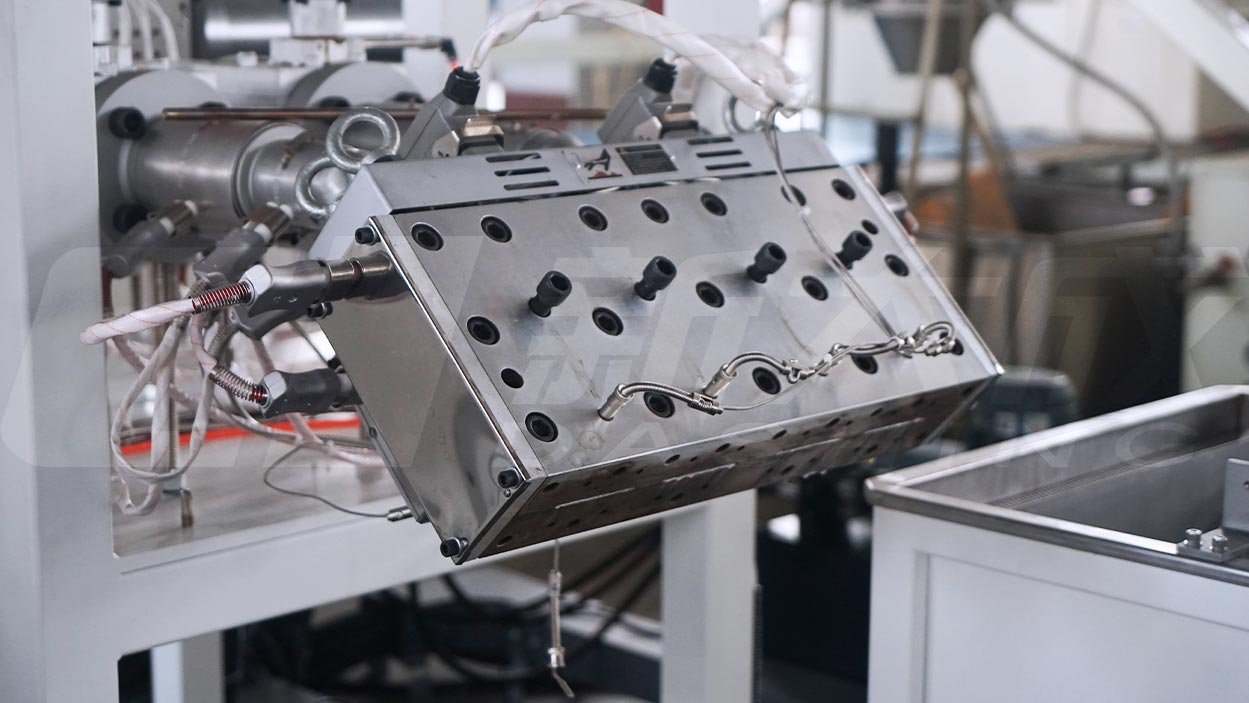

1. Polypropylene Feeding and Extrusion

The process begins with polypropylene raw material being fed into the extruder. Inside the extruder, the material is heated, melted and homogenized before being continuously delivered to the die.

The extrusion system needs to provide stable melt flow because the quality of the extruded sheet directly affects subsequent stretching and final strap dimensions.

For a PP strap production line, the extruder and die should be matched with the required output and product specifications. Stable temperature and pressure control can help reduce variations during continuous production.

At this stage, the material is not yet a finished strap. It is formed into a wider molten or semi-molten sheet that will be processed through the following cooling and stretching sections.

2. Cooling and Initial Forming

After extrusion, the hot material enters the cooling section. Cooling solidifies the polypropylene and prepares it for controlled stretching.

The cooling conditions need to correspond with the extrusion speed and material characteristics. Uneven cooling can influence the dimensional stability of the material entering the stretching section.

For manufacturers evaluating a polypropylene strapping production line, the cooling system should therefore be considered together with the extrusion and stretching processes rather than as an isolated component.

3. Stretching and Orientation

Stretching is one of the key stages in the PP strap manufacturing process.

The cooled polypropylene material is heated and stretched in a controlled manner. This process changes the molecular orientation of the material and contributes to the required tensile properties of the finished strap.

The stretching ratio, heating temperature and line speed need to be coordinated according to the target strap specifications. Different strap widths and thicknesses may require different processing conditions.

This is why the actual production capability of a PP strapping production line should be evaluated according to the desired finished product rather than line speed alone.

4. Heat Setting and Cooling

After stretching, the PP material passes through heat-setting and cooling stages to help stabilize its dimensions.

During stretching, internal stress is introduced into the material. Controlled heat treatment and subsequent cooling help the strap achieve more stable dimensions before embossing and winding.

The relationship between stretching, heat setting and cooling can have a direct influence on the final strap's dimensional stability and mechanical properties.

For continuous PP strap manufacturing, maintaining stable temperatures and synchronized line speed is important, particularly during long production runs.

5. Embossing the PP Strap Surface

The next stage is embossing. Embossing creates a textured pattern on the surface of the strap.

The embossed surface can improve friction and provide the appearance commonly associated with PP packing straps. Embossing conditions need to be controlled so that the pattern remains consistent across the width and along the length of the strap.

The embossing section should also be compatible with the required strap dimensions and production speed. Excessive pressure or inappropriate process conditions can affect strap appearance and dimensional consistency.

6. Slitting and Strap Formation

Depending on the line configuration, the wider extruded material is divided into individual straps after the relevant forming and stretching stages.

The slitting process needs to maintain accurate strap width and clean edges. Consistent slitting becomes particularly important when producing narrow PP straps or multiple straps simultaneously.

For a PP strap making machine, the number of straps produced from the material width and the required finished strap dimensions are important factors when determining the overall production configuration.

7. Winding and Final Roll Formation

The final stage of the PP strap manufacturing process is winding.

The finished straps are wound into rolls for storage, transportation and use in packaging operations. Stable winding tension and accurate strap guiding help produce neat and consistent rolls.

An automatic winding system can reduce manual intervention and improve the consistency of roll changing during continuous production. Depending on the factory's requirements, different winding configurations can be selected.

For manufacturers considering a PP packing strap production line, winding should not be treated as a secondary component. Roll quality directly affects handling efficiency and the usability of the finished strap.

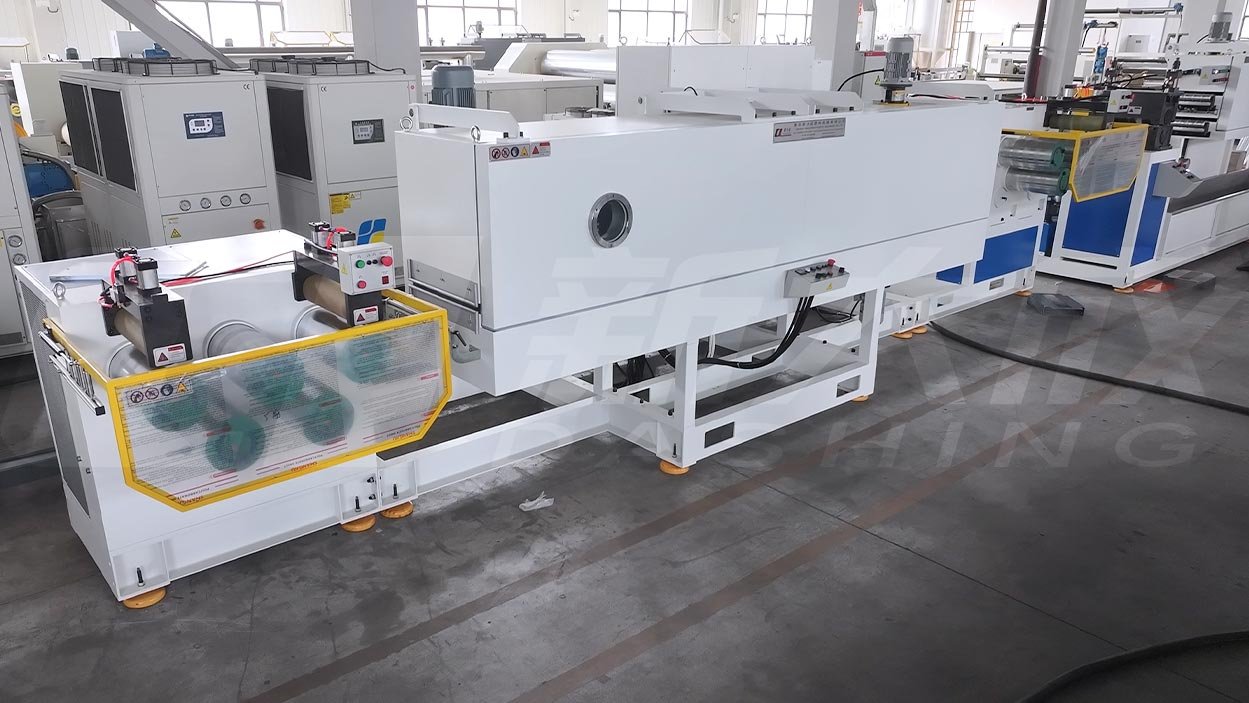

How the PP Strapping Extrusion Line Works as a Complete System

Although each section has a different function, the entire production line operates as an interconnected system.

Extrusion determines the initial material condition. Cooling prepares the material for stretching, while stretching and heat setting establish much of the required mechanical and dimensional properties. Embossing provides the surface pattern, and winding prepares the finished PP strap for packaging and transportation.

Therefore, increasing the speed of only one section does not necessarily increase the effective production capacity of the complete line. The extrusion, stretching, embossing and winding sections need to remain properly synchronized.

What to Consider Before Buying a PP Strap Production Line

When planning a PP strap production line, manufacturers should first define the finished product requirements.

The main parameters normally include:

●  Strap width and thickness

●  Required production capacity

●  Number of straps produced simultaneously

●  Raw material requirements

●  Level of automation

●  Roll weight and winding method

The target application should also be considered. Straps intended for carton packaging may have different requirements from those used for palletizing or heavier-duty bundling.

Providing these details at the beginning of a project makes it easier to determine the appropriate extrusion, stretching and winding configuration.

PP Strap Manufacturing: From Material to Finished Product

The PP strap manufacturing process is a continuous combination of material extrusion, cooling, stretching, heat setting, embossing, slitting and winding. Each stage contributes to the quality and consistency of the finished polypropylene strap.

For manufacturers researching a PP strapping extrusion line, understanding this process provides a useful basis for comparing different equipment configurations and production capacities.

A suitable line should not be selected according to a single machine specification. The complete process, finished strap requirements and expected production conditions should be considered together to achieve reliable and efficient PP strap production.

Conclusion

A modern PP strapping production line connects several processes into one continuous manufacturing system. From polypropylene extrusion to final winding, each stage needs to work in coordination to maintain consistent product dimensions, mechanical performance and roll quality.

Whether the goal is to establish a new PP strap manufacturing line or improve an existing production process, starting with the required strap specifications and target output is an effective way to determine the appropriate equipment configuration.
