| Product | Diameter | Thickness(optional) | Production speed | Distance of dripper |
| High Speed Thin-wall Flat Irrigation Pipe Extrusion Line | 12-16-20mm | 0.12-0.6mm,0.2-0.9mm | 400m/min | 100、150、200、300、400、500-1500mm |
● High speed thin-wall flat irrigation pipe extrusion line speed: 400m/min
● When dripper spacing is 100mm, speed: 350m/min
● When dripper spacing is 200mm, speed: 350m/min
● When dripper spacing is 300mm, speed: 400m/min
◆ Automatic feeding system: can be produced using 100% recycled materials.
◆ Automatic screening, storage and supply device for drippers:Have dripper buffer device, make sure non-stop machinery even if happen bad quality dripper block on feeder.
◆ Dripper inlay spacing: 100~1500mm, adjustable by PLC.
◆ Single screw extruder: PLC temperature system control ensures high efficiency and high output production.
◆ Configuration: One-button automatic pipe-holding dripper insert device.
◆ Irrigation pipe accumulator: equipped with the most advanced European parallel accumulator device.
◆ Configure online automatic imaging analysis and monitoring punching system: monitor the punching status, realize the error automatic alarm function, and ensure the product punching rate.

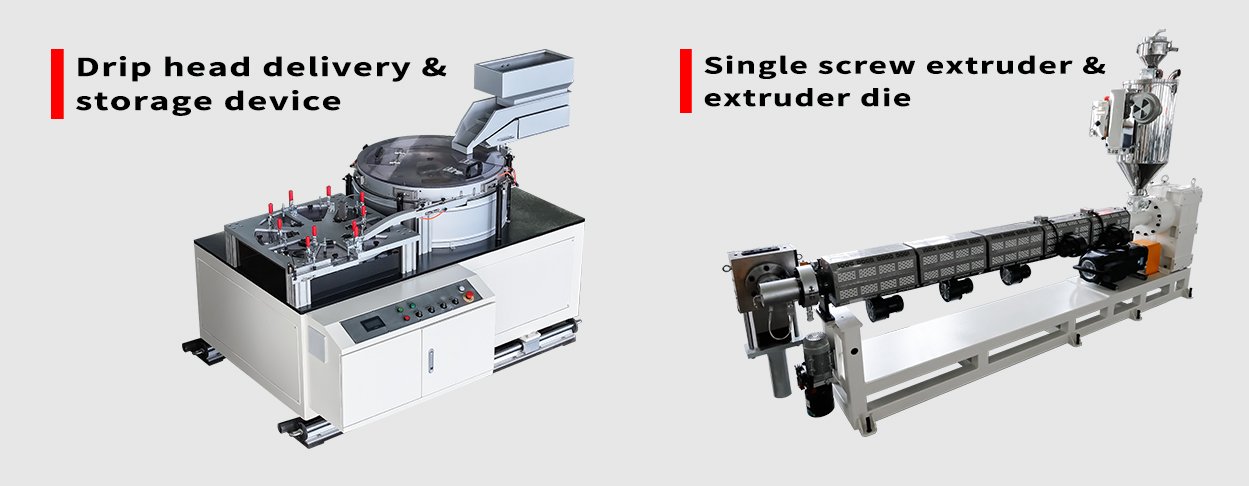

Drip head delivery & storage device
● One sets, screening and recognition speed 2500 psc/min.
● Automatically indentify and supply the sprinker heads, perform stable, reliable, accurate and rapid screening.
Single screw extruder & extruder die
● Using German technology, extrusion capacity 200 kg/h.
● Wall thickness adjustable from 0.15mm to 0.3mm.

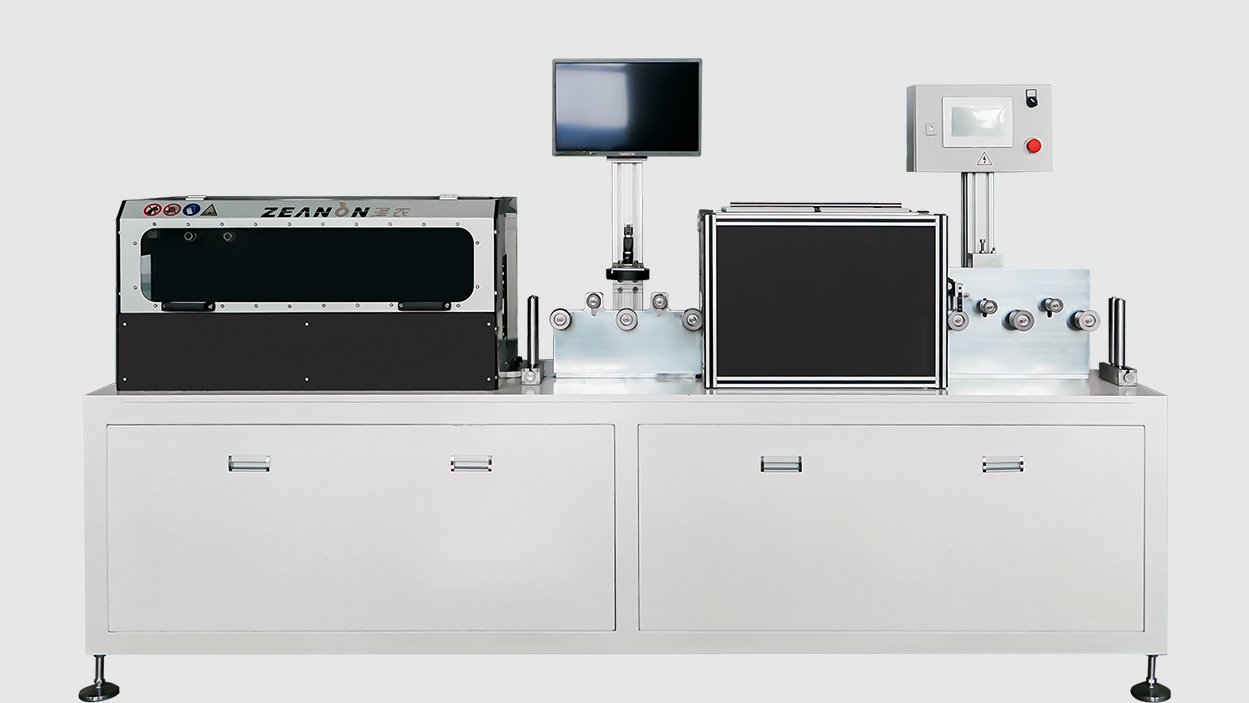

Automatic perforation unit
● 4 units, speed 4000 times/min.
● Adopts full-auto punching device, It realized high-speed, high-accuracy punching and effective monitoring.
● Dripper identification, punching speed and accuracy of drip space all controlled by PLC control system.

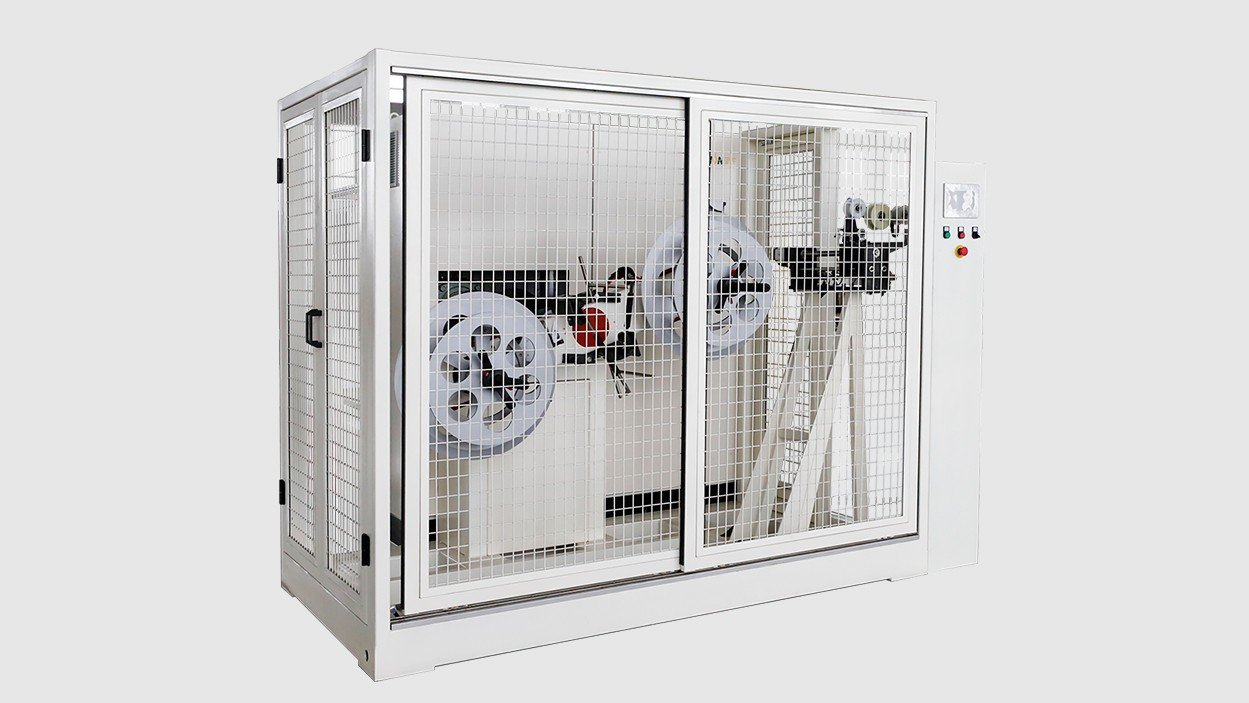

Double-station automatic winding machine
● PLC control automatically completes the drip irrigation pipe wiring, winding cutting, roll changing, meter counting and cutting.
● Meter counting of each roll is accurate and reliable.
About Xindacheng

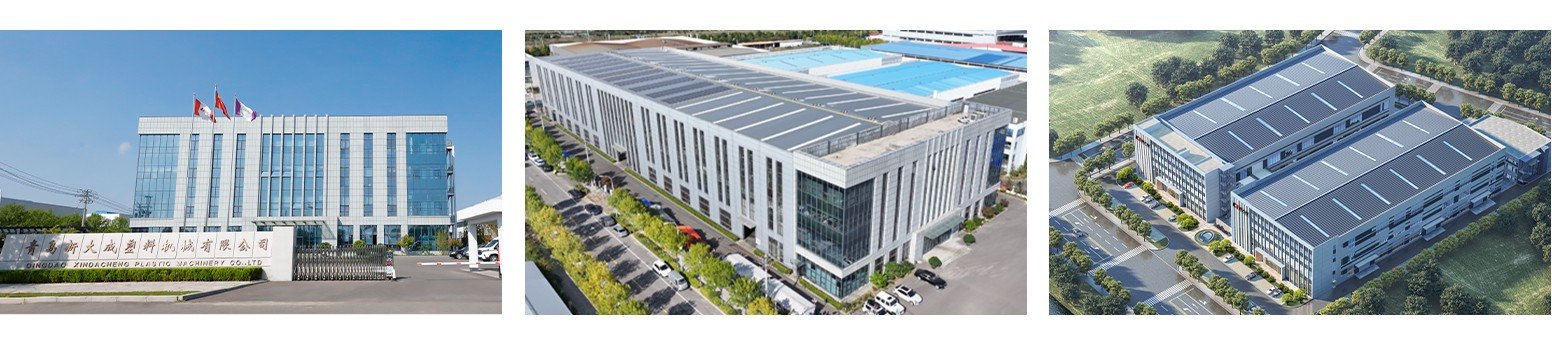

Qingdao Xindacheng Plastic Machinery Co., Ltd., founded in 1998, specializes in the research and development, production, and sales of advanced plastic machinery. Our product range includes a variety of plastic extrusion machinery and complete production lines, such as equipment for drip irrigation pipes, PET/PP strapping tapes, plastic sheets, and plastic pipes.
At Xindacheng, we take pride in our global impact. Our advanced drip irrigation tape production lines have been successfully exported to over 40 countries and regions worldwide, receiving consistent acclaim for their reliability, efficiency, and water-saving precision.
Every machine we ship carries not only our technology but also our commitment to supporting sustainable agriculture globally. From South America to Southeast Asia, from Europe to Africa, our equipment is trusted by growers and manufacturers to deliver exceptional performance day after day.
